Merge pull request #212 from kirchsth/feature/211_rel_properties

#211 AddProperty for relationships

C4.puml

@@ -3,7 +3,7 @@
 'Version
 ' ##################################
 !function C4Version()
-  !return "2.4.0"
+  !return "2.5.0beta1"
 !end function

 !procedure C4VersionDetails()
@@ -1017,6 +1017,11 @@ rectangle "$getBoundary($label, $type)" $toStereos("boundary", $tags) as $alias
     ' line break is not deterministic, calculate it
     !$rel = $rel + '\n\n' + $breakDescr($descr, $REL_DESCR_MAX_CHAR_WIDTH)
   !endif
+  !$prop = $getProps()
+  !if ($prop != "")
+    ' reuse table
+    !$rel = $rel + $prop
+  !endif
   !return $rel
 !endfunction


README.md

@@ -580,7 +580,7 @@ SHOW_LEGEND()

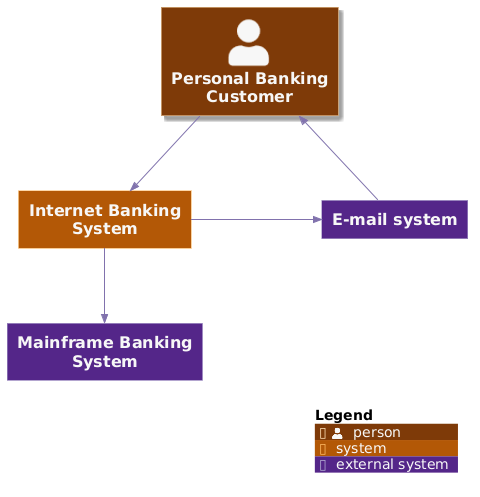

 ![custom schema](https://www.plantuml.com/plantuml/png/dPHVRzem5CNVyodI34qWyIU4KA99I6rOj5LAeUAFjhV8YIyGrN6GxQZqsy-9iyMqwIeXNk1tpxdt7jlYZWl4H94HuoQb2Iamc4SXJlpRQCJGo_2GYcCH5nnOabC1L0oJF1kT2AAbPy059cayMhY3fnBj7iDHXhW09b6qA1rdCJoLtOsRpc8LhjRHVJGrvwRrPRQVnBPdQTojU3oPUlQjpYSL1zjpngxEdOhlSUpTJdG-LXp0ZhK-os2tNT-7gZOhFqtDhptOmmXYdQiPiODYxEXSxUJPimbATAuoJ5rdvdawLvaTRDkkrdyTX57ui0nQcgdYDlYzlIWQknD60W826L2n4Qy4kjO96C-frJSxyM6HavpDcxEMS9zJeV3bKPJwd65WRpnZMU17XFENb1xcbc05MBtMmN0Mm2WYqOSR-5Ti86-ZVHn_vGAorfpk5JcTJq9zECw_OfpVZ5i3KQCw9AMWgPe7qJU_2ZXhxRNtq3ECf-gukqd1HPu1wvkM8eYOFgBFyjhCHLsJDxUfSdHZLQbZISy3BOE2-ETHGkceBL5m5jqCfQJn18FojybhvHiXtJEKWPGz_ltUqbl6rpP_jzME0vSogOfyb3nhqijDDa0nDw7QXviYhprBI0z7UVxlulx7hQnj3XMYsShO_5pzYiBWHx3ytkqPTx9B-UVs1m00 "custom schema")

-## Element properties
+## Element and Relation properties

 A model can be extended with (a table of) properties that concrete deployments or more detailed concepts can be documented:

@@ -616,11 +616,15 @@ Deployment_Node_L(nodeAlias, "Label", "Optional Type", "Optional Description (wi

 System(systemAlias, "Label", "Optional Description (without properties)")

-Rel(personAlias, containerAlias, "Label", "Optional Technology")
+' starting with v.2.5.0 relations support properties too
+WithoutPropertyHeader()
+AddProperty("PropC1", "ValueC1")
+AddProperty("PropC2", "ValueC2")
+Rel(personAlias, containerAlias, "Label", "Optional Technology", "Optional Description")
 @enduml
 ```

-![properties sample](https://www.plantuml.com/plantuml/png/ZP9HRzCm4CVVyobCNaYbhc4L4X9FcpeGI6Mhe834ItLDZiQIuxFiiqP0V7VEqRfiQO0z-NB--P_xnRa839vZQx9dsbOcrgWQPXTUbwM7syL1SnFtCQ2lo39QNbJKbiw0JMVE0jT6xylLoxDDQdt-i2vR28nUMhihT8QwDXrowGNPSrNZTuY6LODGerSRJmuzTtFr1Kp4xBAkZwqYluOMyxdAtne8JJvxl7dZ3s3rJs1DDa7VY9YSXZ6t9J9f_xrbz1PPlVaXGtdqwjNYXS0Rz85iuVhbqcW80gzXZ_sf6vVomQWh39NN_PCgRZKtzoRkxbLtIZF9p3uX7oTurtUB_FYSp_Easeiz21sFdQhpnFImL8bcq2QSJw7BUtJv05qAEjp1xffgtAqBAylVHRUTm_-OLp4mjHFYwbUMAVLL68hZ3p2JdPEnLuEYbDF8e2PbGbPanSvAPdMiJdIsM3MM31swVxjGdBp0ttA5NM1iYz0lu_od9MeC_T_m4StZ_sjgxb7k82095sZhs9e_ "properties sample")

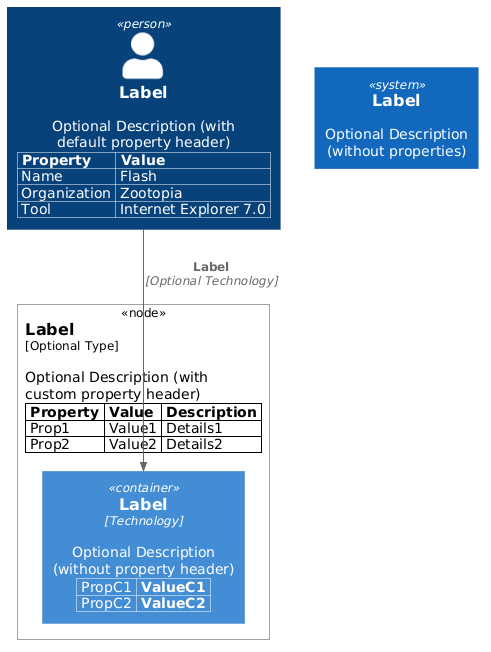

+![properties sample](https://www.plantuml.com/plantuml/png/XP9HRzCm4CVVyobCNfPANR9L82IUDdKWaCfMGG69b-gQ78qbnsVPPqP0V7TiQrsxBYLFFfz_T_R_Vxvo39Pzfx8NKjVADoXQPkFUL9M5-t8hkVKRxz3Mf1arbpLrbL6WOysvuqR9JJL_URwCgIyV5rK7Zj66rFe6ZQA-YqKcNf2TYGP_W5SiMeG6hLXQCcYvdugle3ncrqspInNvBNIOJqN-Je5hyydJmpkx1Ir_0qlI4VfEn6Ga77Ch8XNFFsX6gv75srz6aKKhNfSN0LwYTQGBavPh9S45U04RJ5Lt9lO79MxGrLQcdIZkWoUFIip3LG-I9g5dzXbvzuBtALlaktq-pQFK9EoWwV6pOtGPcGJ7AD0CKhdB8NJsYCuEq5b0zpDOtrA3wqMXmt9QwAetEAAyzewf6n0k_cIP4Dy2G_xOW4auUVRi-LvY28UHlRGGHcHEEgZJeMUzYvx9MM7TQbAqxV-lXVpW0F-64VQEiIjSMeRi6kyeqQNVS2OSGzZghKZ-_IndvQloGbXK40kTSDuOieU5WecoKqwE-ZZguYTKJx_yaPL3KiSz3OslK3U-K_y0 "properties sample")

 ## Version information
