#102, #94, #51: Add custom tags/stereotypes support; dynamic legend supports custom colors, border and shadow; dynamic legend displays (only) used elements, tags/stereotypes.

Browse Source
New added macros: SHOW_DYNAMIC_LEGEND(), AddTagSupport(), UpdateSkinparamsAndLegendEntry(), elements macros are extended with $tags="..."
pull/107/head
KIRCHSTH 5 years ago
parent 00e25d6a1e
commit b63db7ee9b
9 changed files with 420 additions and 178 deletions
Show Stats Download Patch File Download Diff File

189
C4.puml
Unescape Escape View File

@ -4,8 +4,15 @@
' ##################################
!global $ELEMENT_FONT_COLOR = "#FFFFFF"
!global $ARROW_COLOR = "#666666"
!global $BOUNDARY_COLOR = "#444444"
!global $LEGEND_FONT_COLOR = "#FFFFFF"
!global $LEGEND_TITLE_COLOR = "#000000"
!global $LEGEND_UNDEFINED_BK_COLOR = "#87AECA"
!global $LEGEND_UNDEFINED_FONT_COLOR = "#B7DEFA"
' Styling
' ##################################
@ -37,19 +44,165 @@ skinparam queue {
}
skinparam Arrow {
Color #666666
FontColor #666666
Color $ARROW_COLOR
FontColor $ARROW_COLOR
FontSize 12
}
skinparam rectangle<<boundary>> {
Shadowing false
StereotypeFontSize 0
FontColor #444444
BorderColor #444444
FontColor $BOUNDARY_COLOR
BorderColor $BOUNDARY_COLOR
BorderStyle dashed
}
' Legend and Tags
' ##################################
!global $tagDefaultLegend = ""
!global $tagCustomLegend = ""
!unquoted function $toStereos($elementType, $tags)
!if (%strlen($tags) == 0)
!$stereos = '<<' + $elementType + '>>'
%set_variable_value("$" + $elementType + "Legend", %true())
!return $stereos
!endif
!$stereos = ''
!$brPos = %strpos($tags, "+")
!while ($brPos >= 0)
!$tag = %substr($tags, 0, $brPos)
!$stereos = $stereos + '<<' + $tag + '>>'
%set_variable_value("$" + $tag + "Legend", %true())
!$tags = %substr($tags, $brPos+1)
!$brPos = %strpos($tags, "+")
!endwhile
!if (%strlen($tags)>0)
!$stereos = $stereos + '<<' + $tags + '>>'
%set_variable_value("$" + $tags + "Legend", %true())
!endif
' has to be last, otherwise PlantUML overwrites all tag specific skinparams
!$stereos = $stereos + '<<' + $elementType + '>>'
%set_variable_value("$" + $elementType + "Legend", %true())
!return $stereos
!endfunction
!function $elementTagSkinparams($element, $tagStereo, $bgColor, $fontColor, $borderColor, $shadowing)
!$elementSkin = "skinparam " + $element +"<<" + $tagStereo + ">> {" + %newline()
!if ($fontColor!="")
!$elementSkin = $elementSkin + " StereotypeFontColor " + $fontColor + %newline()
!$elementSkin = $elementSkin + " FontColor " + $fontColor + %newline()
!endif
!if ($bgColor!="")
!$elementSkin = $elementSkin + " BackgroundColor " + $bgColor + %newline()
!endif
!if ($borderColor!="")
!$elementSkin = $elementSkin + " BorderColor " + $borderColor+ %newline()
!endif
!if ($shadowing == "true")
!$elementSkin = $elementSkin + " Shadowing<<" + $tagStereo + ">> " + "true" + %newline()
!endif
!if ($shadowing == "false")
!$elementSkin = $elementSkin + " Shadowing<<" + $tagStereo + ">> " + "false" + %newline()
!endif
!$elementSkin = $elementSkin + "}" + %newline()
!return $elementSkin
!endfunction
!unquoted procedure $defineSkinparams($tagStereo, $bgColor, $fontColor, $borderColor, $shadowing)
!$tagSkin = $elementTagSkinparams("rectangle", $tagStereo, $bgColor, $fontColor, $borderColor, $shadowing)
!$tagSkin = $tagSkin + $elementTagSkinparams("database", $tagStereo, $bgColor, $fontColor, $borderColor, $shadowing)
!$tagSkin = $tagSkin + $elementTagSkinparams("queue", $tagStereo, $bgColor, $fontColor, $borderColor, $shadowing)
$tagSkin
!endprocedure
!function $tagLegendEntry($tagStereo, $bgColor, $fontColor, $borderColor, $shadowing)
!$tagEntry = "|"
!if ($bgColor!="")
!$bg = $bgColor
!else
!$bg = $LEGEND_UNDEFINED_BK_COLOR
!endif
' named colors have to start with # too
!if (%substr($bg, 0, 1) != "#")
!$bg = "#" + $bg
!endif
!$tagEntry = $tagEntry + "<" + $bg +">"
' <U+25AF> ..white rectangle
!if ($borderColor!="")
!$tagEntry = $tagEntry + "<color:"+$borderColor+"><U+25AF></color> "
!else
!$tagEntry = $tagEntry + "<color:"+$bg+"><U+25AF></color> "
!endif
!if ($fontColor!="")
!$tagEntry = $tagEntry + "<color:"+$fontColor+">"
!else
!$tagEntry = $tagEntry + "<color:"+$LEGEND_UNDEFINED_FONT_COLOR+">"
!endif
!$tagEntry = $tagEntry + " " + $tagStereo + " "
!if ($shadowing == "true")
!$tagEntry = $tagEntry + "(shadow) "
!endif
!if ($shadowing == "false")
!$tagEntry = $tagEntry + "(no shadow) "
!endif
!if ($fontColor == "" && $bgColor == "")
!$tagEntry = $tagEntry + "(no font, no back color) "
!else
!if ($fontColor == "")
!$tagEntry = $tagEntry + "(no font color) "
!endif
!if ($bgColor == "")
!$tagEntry = $tagEntry + "(no back color) "
!endif
!endif
!$tagEntry = $tagEntry + "</color> "
!$tagEntry = $tagEntry + "|"
!return $tagEntry
!endfunction
!unquoted procedure $addTagToDynamicLegend($tagStereo, $bgColor="", $fontColor="", $borderColor="", $shadowing="")
!$tagEntry = $tagLegendEntry($tagStereo, $bgColor, $fontColor, $borderColor, $shadowing)
%set_variable_value("$" + $tagStereo + "LegendEntry", $tagEntry)
!$tagCustomLegend = $tagCustomLegend + $tagStereo + "\n"
!endprocedure
!procedure $showActiveLegendEntries($allDefined)
!$brPos = %strpos($allDefined, "\n")
!while ($brPos >= 0)
!$tagStereo = %substr($allDefined, 0, $brPos)
!$allDefined = %substr($allDefined, $brPos+2)
!$brPos = %strpos($allDefined, "\n")
!if (%variable_exists("$" + $tagStereo + "Legend"))
%get_variable_value("$" + $tagStereo + "LegendEntry")
!endif
!endwhile
!if (%strlen($allDefined)>0)
!$tagStereo = $allDefined
!if (%variable_exists("$" + $tagStereo + "Legend"))
%get_variable_value("$" + $tagStereo + "LegendEntry")
!endif
!endif
!endprocedure
' used by new defined tags
!unquoted procedure AddTagSupport($tagStereo, $bgColor="", $fontColor="", $borderColor="", $shadowing="")
$defineSkinparams($tagStereo, $bgColor, $fontColor, $borderColor, $shadowing)
$addTagToDynamicLegend($tagStereo, $bgColor, $fontColor, $borderColor, $shadowing)
!endprocedure
' used by existing elements like person, ...
!unquoted procedure UpdateSkinparamsAndLegendEntry($tagStereo, $bgColor="", $fontColor="", $borderColor="", $shadowing="")
$defineSkinparams($tagStereo, $bgColor, $fontColor, $borderColor, $shadowing)
!$tagEntry = $tagLegendEntry($tagStereo, $bgColor, $fontColor, $borderColor, $shadowing)
%set_variable_value("$" + $tagStereo + "LegendEntry", $tagEntry)
!endprocedure
' tags/stereotypes have to be delimited with \n
!unquoted procedure SetDefaultLegendEntries($tagStereoEntries)
!$tagDefaultLegend = $tagStereoEntries
!endprocedure
' Layout
' ##################################
@ -72,16 +225,34 @@ top to bottom direction
left to right direction
!endprocedure
' has to be last call in diagram
!unquoted procedure SHOW_DYNAMIC_LEGEND($hideStereotype="true")
!if ($hideStereotype=="true")
hide stereotype
!endif
legend right
|<color:$LEGEND_TITLE_COLOR>**Legend**</color> |
$showActiveLegendEntries($tagDefaultLegend)
$showActiveLegendEntries($tagCustomLegend)
endlegend
!endprocedure
' Boundaries
' ##################################
!unquoted function Boundary($alias, $label)
!return 'rectangle "=='+$label+'" <<boundary>> as '+$alias
!endfunction
!unquoted function Boundary($alias, $label, $type)
!return 'rectangle "=='+$label+'\n<size:'+$TECHN_FONT_SIZE+'>['+$type+']</size>" <<boundary>> as '+$alias
!function $getBoundary($label, $type)
!if ($type == "")
!return '==' + $label
!endif
!if (type != "")
!return '==' + $label + '\n<size:' + $TECHN_FONT_SIZE + '>[' + $type + ']</size>'
!endif
!endfunction
!unquoted procedure Boundary($alias, $label, $type="", $tags="")
rectangle "$getBoundary($label, $type)" $toStereos("boundary", $tags) as $alias
!endprocedure
' Relationship
' ##################################

70
C4_Component.puml
Unescape Escape View File

@ -11,6 +11,7 @@
' ##################################
!global $COMPONENT_FONT_COLOR = "#000000"
!global $COMPONENT_BG_COLOR = "#85BBF0"
!global $COMPONENT_BORDER_COLOR = "#78A8D8"
!global $EXTERNAL_COMPONENT_BG_COLOR = "#CCCCCC"
@ -19,51 +20,14 @@
' Styling
' ##################################
skinparam rectangle<<component>> {
StereotypeFontColor $COMPONENT_FONT_COLOR
FontColor $COMPONENT_FONT_COLOR
BackgroundColor $COMPONENT_BG_COLOR
BorderColor $COMPONENT_BORDER_COLOR
}
skinparam database<<component>> {
StereotypeFontColor $COMPONENT_FONT_COLOR
FontColor $COMPONENT_FONT_COLOR
BackgroundColor $COMPONENT_BG_COLOR
BorderColor $COMPONENT_BORDER_COLOR
}
skinparam queue<<component>> {
StereotypeFontColor $COMPONENT_FONT_COLOR
FontColor $COMPONENT_FONT_COLOR
BackgroundColor $COMPONENT_BG_COLOR
BorderColor $COMPONENT_BORDER_COLOR
}
skinparam rectangle<<external_component>> {
StereotypeFontColor $COMPONENT_FONT_COLOR
FontColor $COMPONENT_FONT_COLOR
BackgroundColor $EXTERNAL_COMPONENT_BG_COLOR
BorderColor $EXTERNAL_COMPONENT_BORDER_COLOR
}
skinparam database<<external_component>> {
StereotypeFontColor $COMPONENT_FONT_COLOR
FontColor $COMPONENT_FONT_COLOR
BackgroundColor $EXTERNAL_COMPONENT_BG_COLOR
BorderColor $EXTERNAL_COMPONENT_BORDER_COLOR
}
skinparam queue<<external_component>> {
StereotypeFontColor $COMPONENT_FONT_COLOR
FontColor $COMPONENT_FONT_COLOR
BackgroundColor $EXTERNAL_COMPONENT_BG_COLOR
BorderColor $EXTERNAL_COMPONENT_BORDER_COLOR
}
UpdateSkinparamsAndLegendEntry("component", $COMPONENT_BG_COLOR, $COMPONENT_FONT_COLOR, $COMPONENT_BORDER_COLOR)
UpdateSkinparamsAndLegendEntry("external_component", $EXTERNAL_COMPONENT_BG_COLOR, $COMPONENT_FONT_COLOR, $EXTERNAL_COMPONENT_BORDER_COLOR)
' Layout
' ##################################
SetDefaultLegendEntries("person\nsystem\ncontainer\ncomponent\nexternal_person\nexternal_system\nexternal_container\nexternal_component")
!procedure LAYOUT_WITH_LEGEND()
hide stereotype
legend right
@ -97,26 +61,26 @@ endlegend
!endif
!endfunction
!unquoted procedure Component($alias, $label, $techn, $descr="", $sprite="")
rectangle "$getComponent($label, $techn, $descr, $sprite)" <<component>> as $alias
!unquoted procedure Component($alias, $label, $techn, $descr="", $sprite="", $tags="")
rectangle "$getComponent($label, $techn, $descr, $sprite)" $toStereos("component",$tags) as $alias
!endprocedure
!unquoted procedure ComponentDb($alias, $label, $techn, $descr="", $sprite="")
database "$getComponent($label, $techn, $descr, $sprite)" <<component>> as $alias
!unquoted procedure ComponentDb($alias, $label, $techn, $descr="", $sprite="", $tags="")
database "$getComponent($label, $techn, $descr, $sprite)" $toStereos("component",$tags) as $alias
!endprocedure
!unquoted procedure ComponentQueue($alias, $label, $techn, $descr="", $sprite="")
queue "$getComponent($label, $techn, $descr, $sprite)" <<component>> as $alias
!unquoted procedure ComponentQueue($alias, $label, $techn, $descr="", $sprite="", $tags="")
queue "$getComponent($label, $techn, $descr, $sprite)" $toStereos("component",$tags) as $alias
!endprocedure
!unquoted procedure Component_Ext($alias, $label, $techn, $descr="", $sprite="")
rectangle "$getComponent($label, $techn, $descr, $sprite)" <<external_component>> as $alias
!unquoted procedure Component_Ext($alias, $label, $techn, $descr="", $sprite="", $tags="")
rectangle "$getComponent($label, $techn, $descr, $sprite)" $toStereos("external_component",$tags) as $alias
!endprocedure
!unquoted procedure ComponentDb_Ext($alias, $label, $techn, $descr="", $sprite="")
database "$getComponent($label, $techn, $descr, $sprite)" <<external_component>> as $alias
!unquoted procedure ComponentDb_Ext($alias, $label, $techn, $descr="", $sprite="", $tags="")
database "$getComponent($label, $techn, $descr, $sprite)" $toStereos("external_component",$tags) as $alias
!endprocedure
!unquoted procedure ComponentQueue_Ext($alias, $label, $techn, $descr="", $sprite="")
queue "$getComponent($label, $techn, $descr, $sprite)" <<external_component>> as $alias
!unquoted procedure ComponentQueue_Ext($alias, $label, $techn, $descr="", $sprite="", $tags="")
queue "$getComponent($label, $techn, $descr, $sprite)" $toStereos("external_component",$tags) as $alias
!endprocedure

76
C4_Container.puml
Unescape Escape View File

@ -17,52 +17,14 @@
' Styling
' ##################################
skinparam rectangle<<container>> {
StereotypeFontColor $ELEMENT_FONT_COLOR
FontColor $ELEMENT_FONT_COLOR
BackgroundColor $CONTAINER_BG_COLOR
BorderColor $CONTAINER_BORDER_COLOR
}
skinparam database<<container>> {
StereotypeFontColor $ELEMENT_FONT_COLOR
FontColor $ELEMENT_FONT_COLOR
BackgroundColor $CONTAINER_BG_COLOR
BorderColor $CONTAINER_BORDER_COLOR
}
skinparam queue<<container>> {
StereotypeFontColor $ELEMENT_FONT_COLOR
FontColor $ELEMENT_FONT_COLOR
BackgroundColor $CONTAINER_BG_COLOR
BorderColor $CONTAINER_BORDER_COLOR
}
skinparam rectangle<<external_container>> {
StereotypeFontColor $ELEMENT_FONT_COLOR
FontColor $ELEMENT_FONT_COLOR
BackgroundColor $EXTERNAL_CONTAINER_BG_COLOR
BorderColor $EXTERNAL_CONTAINER_BORDER_COLOR
}
skinparam database<<external_container>> {
StereotypeFontColor $ELEMENT_FONT_COLOR
FontColor $ELEMENT_FONT_COLOR
BackgroundColor $EXTERNAL_CONTAINER_BG_COLOR
BorderColor $EXTERNAL_CONTAINER_BORDER_COLOR
}
skinparam queue<<external_container>> {
StereotypeFontColor $ELEMENT_FONT_COLOR
FontColor $ELEMENT_FONT_COLOR
BackgroundColor $EXTERNAL_CONTAINER_BG_COLOR
BorderColor $EXTERNAL_CONTAINER_BORDER_COLOR
}
UpdateSkinparamsAndLegendEntry("container", $CONTAINER_BG_COLOR, $ELEMENT_FONT_COLOR, $CONTAINER_BORDER_COLOR)
UpdateSkinparamsAndLegendEntry("external_container", $EXTERNAL_CONTAINER_BG_COLOR, $ELEMENT_FONT_COLOR, $EXTERNAL_CONTAINER_BORDER_COLOR)
' Layout
' ##################################
SetDefaultLegendEntries("person\nsystem\ncontainer\nexternal_person\nexternal_system\nexternal_container")
!procedure LAYOUT_WITH_LEGEND()
hide stereotype
legend right
@ -94,33 +56,33 @@ endlegend
!endif
!endfunction
!unquoted procedure Container($alias, $label, $techn, $descr="", $sprite="")
rectangle "$getContainer($label, $techn, $descr, $sprite)" <<container>> as $alias
!unquoted procedure Container($alias, $label, $techn, $descr="", $sprite="", $tags="")
rectangle "$getContainer($label, $techn, $descr, $sprite)" $toStereos("container", $tags) as $alias
!endprocedure
!unquoted procedure ContainerDb($alias, $label, $techn, $descr="", $sprite="")
database "$getContainer($label, $techn, $descr, $sprite)" <<container>> as $alias
!unquoted procedure ContainerDb($alias, $label, $techn, $descr="", $sprite="", $tags="")
database "$getContainer($label, $techn, $descr, $sprite)" $toStereos("container", $tags) as $alias
!endprocedure
!unquoted procedure ContainerQueue($alias, $label, $techn, $descr="", $sprite="")
queue "$getContainer($label, $techn, $descr, $sprite)" <<container>> as $alias
!unquoted procedure ContainerQueue($alias, $label, $techn, $descr="", $sprite="", $tags="")
queue "$getContainer($label, $techn, $descr, $sprite)" $toStereos("container", $tags) as $alias
!endprocedure
!unquoted procedure Container_Ext($alias, $label, $techn, $descr="", $sprite="")
rectangle "$getContainer($label, $techn, $descr, $sprite)" <<external_container>> as $alias
!unquoted procedure Container_Ext($alias, $label, $techn, $descr="", $sprite="", $tags="")
rectangle "$getContainer($label, $techn, $descr, $sprite)" $toStereos("external_container", $tags) as $alias
!endprocedure
!unquoted procedure ContainerDb_Ext($alias, $label, $techn, $descr="", $sprite="")
database "$getContainer($label, $techn, $descr, $sprite)" <<external_container>> as $alias
!unquoted procedure ContainerDb_Ext($alias, $label, $techn, $descr="", $sprite="", $tags="")
database "$getContainer($label, $techn, $descr, $sprite)" $toStereos("external_container", $tags) as $alias
!endprocedure
!unquoted procedure ContainerQueue_Ext($alias, $label, $techn, $descr="", $sprite="")
queue "$getContainer($label, $techn, $descr, $sprite)" <<external_container>> as $alias
!unquoted procedure ContainerQueue_Ext($alias, $label, $techn, $descr="", $sprite="", $tags="")
queue "$getContainer($label, $techn, $descr, $sprite)" $toStereos("external_container", $tags) as $alias
!endprocedure
' Boundaries
' ##################################
!unquoted function Container_Boundary($alias, $label)
!return Boundary($alias, $label, "Container")
!endfunction
!unquoted procedure Container_Boundary($alias, $label, $tags="")
Boundary($alias, $label, "Container", $tags)
!endprocedure

66
C4_Context.puml
Unescape Escape View File

@ -1,6 +1,6 @@
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4.puml
' uncomment the following line and comment the first to use locally
' !include C4.puml
' !include C4.puml
' Scope: A single software system.
' Primary elements: The software system in scope.
@ -11,40 +11,22 @@
' ##################################
!global $PERSON_BG_COLOR = "#08427B"
!global $PERSON_BORDER_COLOR = "#073B6F"
!global $EXTERNAL_PERSON_BG_COLOR = "#686868"
!global $EXTERNAL_PERSON_BORDER_COLOR = "#8A8A8A"
!global $SYSTEM_BG_COLOR = "#1168BD"
!global $SYSTEM_BORDER_COLOR = "#3C7FC0"
!global $EXTERNAL_SYSTEM_BG_COLOR = "#999999"
!global $EXTERNAL_SYSTEM_BORDER_COLOR = "#8A8A8A"
' Styling
' ##################################
skinparam rectangle<<person>> {
StereotypeFontColor $ELEMENT_FONT_COLOR
FontColor $ELEMENT_FONT_COLOR
BackgroundColor $PERSON_BG_COLOR
BorderColor #073B6F
}
skinparam rectangle<<external_person>> {
StereotypeFontColor $ELEMENT_FONT_COLOR
FontColor $ELEMENT_FONT_COLOR
BackgroundColor $EXTERNAL_PERSON_BG_COLOR
BorderColor #8A8A8A
}
UpdateSkinparamsAndLegendEntry("person", $PERSON_BG_COLOR, $ELEMENT_FONT_COLOR, $PERSON_BORDER_COLOR)
UpdateSkinparamsAndLegendEntry("external_person", $EXTERNAL_PERSON_BG_COLOR, $ELEMENT_FONT_COLOR, $EXTERNAL_PERSON_BORDER_COLOR)
UpdateSkinparamsAndLegendEntry("system", $SYSTEM_BG_COLOR, $ELEMENT_FONT_COLOR, $SYSTEM_BORDER_COLOR)
UpdateSkinparamsAndLegendEntry("external_system", $EXTERNAL_SYSTEM_BG_COLOR, $ELEMENT_FONT_COLOR, $EXTERNAL_SYSTEM_BORDER_COLOR)
skinparam rectangle<<system>> {
StereotypeFontColor $ELEMENT_FONT_COLOR
FontColor $ELEMENT_FONT_COLOR
BackgroundColor $SYSTEM_BG_COLOR
BorderColor #3C7FC0
}
skinparam rectangle<<external_system>> {
StereotypeFontColor $ELEMENT_FONT_COLOR
FontColor $ELEMENT_FONT_COLOR
BackgroundColor $EXTERNAL_SYSTEM_BG_COLOR
BorderColor #8A8A8A
}
sprite $person [48x48/16] {
000000000000000000000000000000000000000000000000
@ -100,6 +82,8 @@ sprite $person [48x48/16] {
' Layout
' ##################################
SetDefaultLegendEntries("person\nsystem\nexternal_person\nexternal_system")
!procedure LAYOUT_WITH_LEGEND()
hide stereotype
legend right
@ -144,28 +128,28 @@ endlegend
!endif
!endfunction
!unquoted procedure Person($alias, $label, $descr="", $sprite="")
rectangle "$getPerson($label, $descr, $sprite)" <<person>> as $alias
!unquoted procedure Person($alias, $label, $descr="", $sprite="", $tags="")
rectangle "$getPerson($label, $descr, $sprite)" $toStereos("person", $tags) as $alias
!endprocedure
!unquoted procedure Person_Ext($alias, $label, $descr="", $sprite="")
rectangle "$getPerson($label, $descr, $sprite)" <<external_person>> as $alias
!unquoted procedure Person_Ext($alias, $label, $descr="", $sprite="", $tags="")
rectangle "$getPerson($label, $descr, $sprite)" $toStereos("external_person", $tags) as $alias
!endprocedure
!unquoted procedure System($alias, $label, $descr="", $sprite="")
rectangle "$getSystem($label, $descr, $sprite)" <<system>> as $alias
!unquoted procedure System($alias, $label, $descr="", $sprite="", $tags="")
rectangle "$getSystem($label, $descr, $sprite)" $toStereos("system", $tags) as $alias
!endprocedure
!unquoted procedure System_Ext($alias, $label, $descr="", $sprite="")
rectangle "$getSystem($label, $descr, $sprite)" <<external_system>> as $alias
!unquoted procedure System_Ext($alias, $label, $descr="", $sprite="", $tags="")
rectangle "$getSystem($label, $descr, $sprite)" $toStereos("external_system", $tags) as $alias
!endprocedure
' Boundaries
' ##################################
!unquoted function Enterprise_Boundary($alias, $label)
!return Boundary($alias, $label, "Enterprise")
!endfunction
!unquoted function System_Boundary($alias, $label)
!return Boundary($alias, $label, "System")
!endfunction
!unquoted procedure Enterprise_Boundary($alias, $label, $tags="")
Boundary($alias, $label, "Enterprise", $tags)
!endprocedure
!unquoted procedure System_Boundary($alias, $label, $tags="")
Boundary($alias, $label, "System", $tags)
!endprocedure

34
C4_Deployment.puml
Unescape Escape View File

@ -6,19 +6,25 @@
' ##################################
!global $NODE_FONT_COLOR = "#000000"
!global $NODE_BG_COLOR = "#FFFFFF"
!global $NODE_BORDER_COLOR = "#A2A2A2"
' Styling
' ##################################
' orig was without background
'UpdateSkinparamsAndLegendEntry("node", $fontColor=$NODE_FONT_COLOR, $borderColor=$NODE_BORDER_COLOR)
UpdateSkinparamsAndLegendEntry("node", $bgColor=$NODE_BG_COLOR, $fontColor=$NODE_FONT_COLOR, $borderColor=$NODE_BORDER_COLOR)
skinparam rectangle<<node>> {
Shadowing false
StereotypeFontSize 0
FontColor $NODE_FONT_COLOR
BorderColor $NODE_BORDER_COLOR
BorderStyle solid
}
' Layout
' ##################################
' comment if node should not be added to legend. No dynamic legend extension required
SetDefaultLegendEntries("person\nsystem\ncontainer\nexternal_person\nexternal_system\nexternal_container\nnode")
' Special
' ##################################
@ -30,11 +36,8 @@ skinparam rectangle<<node>> {
' Elements
' ##################################
!unquoted function Deployment_Node($alias, $label)
!return 'rectangle "=='+$label+'" <<node>> as '+$alias
!endfunction
!unquoted function Deployment_Node($alias, $label, $type)
!unquoted function $breakLine($type)
!$multiLine = ""
!if (%strpos($type, "\n") >= 0)
!while (%strpos($type, "\n") >= 0)
@ -65,8 +68,19 @@ skinparam rectangle<<node>> {
!endif
!if (%strlen($type)>0)
!$multiLine = $multiLine + $type
!else
!endif
!return 'rectangle "=='+$label+'\n<size:'+$TECHN_FONT_SIZE+'>['+$multiLine+']</size>" <<node>> as '+$alias
!return $multiLine
!endfunction
!function $getNode($label, $type)
!if ($type == "")
!return '==' + $label
!endif
!if (type != "")
!return '==' + $label + '\n<size:' + $TECHN_FONT_SIZE + '>[' + $breakLine($type) + ']</size>'
!endif
!endfunction
!unquoted procedure Deployment_Node($alias, $label, $type="", $tags="")
rectangle "$getNode($label, $type)" $toStereos("node",$tags) as $alias
!endprocedure

28
LayoutOptions.md
Unescape Escape View File

@ -53,7 +53,7 @@ Rel(web_app, twitter, "Gets tweets from", "HTTPS")
![LAYOUT_LEFT_RIGHT Sample](https://www.plantuml.com/plantuml/png/PL1DIyD05BplhrZheIdKX8edJusXjaAhfKaLJs6RFEt2Vh7xrb34_-uBhLPmBmDlvhsPsMb0uJ5gnPVvwzEsgfUp-whUFCmN5I-5TWhOXJIDYYtmFQ8BjrdcHPU-Izp7NGpW6siG3AQDrPbelHJcGqKNi-BcQgs4mUrgcIc14916TK5g8Gtur94fO_zSan5ZQ_31caIqMfen7-Gzoe1UeFM34IiF0K7NTpQQLlX3qap6V7WCEnpnJyRf_Vea7UnguHpTUO4TpvrJiX4ehHdGgBWSyxnSfu-pYbOyyEjqmbVFHS_bIjakyBvZu6Wv5NI293egbEJ5gquYWkSeDIZo2fJjwvGkmID9Tquo8ja6r4-hSwnje4t2HLMjIrBreb_sV6OEI34wwE7DM_rtPGgcfU_y1W00 "LAYOUT_LEFT_RIGHT Sample")
## LAYOUT_WITH_LEGEND()
## LAYOUT_WITH_LEGEND() or SHOW_DYNAMIC_LEGEND(?hideStereotype)
Colors can help to add additional information or simply to make the diagram more aesthetically pleasing.
It can also help to save some space.
@ -80,6 +80,32 @@ Rel(web_app, twitter, "Gets tweets from", "HTTPS")
![LAYOUT_WITH_LEGEND Sample](https://www.plantuml.com/plantuml/png/PL1DJy905BplhrZnG4cm3SQJ9sebO0BOs2Bnr2pjKpRPh-o-sX3ZV_Sr89YubqdUp7ipizE0mcEh5L-cRy-Rije-bOjgEPlFre-y4DefO5VIrAfjWEyHNRXF4Y-w-4FYljsr0Nnj3OB1kBOw4OsNmdogrhL9TdUJAs5mirecIY04f56LaLf80pvsvChOVzjen5WEFbWJYKPBC-Q3j4SPq0kqVZ1YnI4WwEh1jgOH_X3Lap4V7jCEH_oBSNfdewY3NIMSepjRsF7KEILhWTAQ0Osowp5FYpnUpqfQyS1lumbVlMOzbofbky3xae6ZvTJG2PBeLg4aBrvs4X4yHwb1aLUWRD-dT14UIRfpaX79Na3zjhh4sWJQ95oKPLwGgXUTsSkPEI35wA27Ts_rtvKfc8R-ymS0 "LAYOUT_WITH_LEGEND Sample")
Instead of a static legend (activated with `LAYOUT_WITH_LEGEND()`) a dynamic legend can be activated with `SHOW_DYNAMIC_LEGEND(?hideStereotype)`.
The dynamic legend has following differences:
* only relevant elements are listed
* custom tags/stereotypes are supported
* stereotypes can remain visible (with `SHOW_DYNAMIC_LEGEND(false)`)
* **`SHOW_DYNAMIC_LEGEND()` has to be last call in the diagram**
```csharp
@startuml SHOW_DYNAMIC_LEGEND Sample
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml
Person(admin, "Administrator")
System_Boundary(c1, 'Sample') {
Container(web_app, "Web Application", "C#, ASP.NET Core 2.1 MVC", "Allows users to compare multiple Twitter timelines")
}
System(twitter, "Twitter")
Rel(admin, web_app, "Uses", "HTTPS")
Rel(web_app, twitter, "Gets tweets from", "HTTPS")
SHOW_DYNAMIC_LEGEND()
@enduml
```
![SHOW_DYNAMIC_LEGEND Sample](http://www.plantuml.com/plantuml/png/RL5Dgzf05DtFhxYrYnV1bs3fgYlJA5fG6vfOwIfCajiwC1_3p0r1IlzxRz1g5o-RIyx7uHnc5Ka66eo6QlVrtAn_7FF3bwBPRxQRunegQRn6yKxPJWyzmeN8nqzP5kIO_b9q6TeXOkYS9RIKTivaNaixnRr6whLgi-BZQpb1fyC-Cp8I1eQQWXrIMGofPwqG9OReR29xe-m2PlbqLQGWoONPN5HNDfhcinjiByCrwPOBUBbrUvd3Rm7yFIAJ4Tj6UiyvPsmXzrwhJf9oTiPGyNu1ULMcnqtDbe3m8Lt2uNinSRdMRemmJOf03dYFbomnWoRbDK8zAY8CGCgWLXOZT_jpRvVGZUISkun9yGtrlrNFMgV8JhwxkYuhLasY1_kCsI95_iNf_0pE_6yHRxnMCXShjFrWz5y0 "LAYOUT_WITH_LEGEND Sample")
## LAYOUT_AS_SKETCH()

120
README.md
Unescape Escape View File

@ -102,6 +102,34 @@ Rel_R(api, db, "Reads/Writes")
![test](https://www.plantuml.com/plantuml/png/hL9DZzCm4BtdLtXxeIjjwmDmuRHLMzXA_Q8VL9ogQJnfZHmxUEnM_7l6QRORM90uS8erx-NDl9dtI05yYAN9xhJDJLGeJY5Kz45A3vV-KOTJF4H2dpiRq8P-xae9ockmPnEhA8VlUai3DcndKsaW80KkxOVC1ctHzwka_KP4op-MB2322KNXZ74NRO_2C4c0LU8NM7lYbnFSM1YNWp4_MECsuUi6sPt28acDnbycmyLy_GykGgpOo5jPfV5PfASPxHNCw57bDLkH9L10BnMU4qQtBXyNyyrWDrulPkF_sgYkmGN9bTXx_tAIPrSIx34QQ4o_Xh_16Vw6bVJTx7coC_x-UykDJBDJizFfuEjYkzdl9fkd_NJyQJmVTU-pRCa4Pxk9-20wmqY1X_KTVY_HLGRvWX24HLIYyax5F502Q-7EVNOxN9SguFfwEKXmOomzDvo0aYb2ymfz0NaZcPAHD-sk6B2skF3Esmhj5b1fHWRBIIAavQJl4yVD80bEbU1RCP68KtRK-OtLqXWTkkh0zH44E01XuinqxXsv8eZrvsajwOoYPxiFmdd58wPKQtjscWreMpXVGj3E9dxh5jmhMw5fzddToPQmtbaTBIOal4QkVlu0xrTNh_MeAmH5SbSdY-57j8hl-HC0 "test")
Entities can be decorated with tags and explained via dynamic calculated legends, for example:
```cs
@startuml
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml
AddTagSupport("v1.0", $borderColor="#d73027")
AddTagSupport("v1.1", $fontColor="#d73027")
Person(user, "Customer", "People that need products")
Person(admin, "Administrator", "People that administrates the products via the new v1.1 components", $tags="v1.1")
Container(spa, "SPA", "angular", "The main interface that the customer interacts with via v1.0", $tags="v1.0")
Container(spaAdmin, "Admin SPA", "angular", "The administrator interface that the customer interacts with via new v1.1", $tags="v1.1")
Container(api, "API", "java", "Handles all business logic (incl. new v1.1 extensions)", $tags="v1.0+v1.1")
ContainerDb(db, "Database", "Microsoft SQL", "Holds product, order and invoice information")
Rel(user, spa, "Uses", "https")
Rel(spa, api, "Uses", "https")
Rel_R(api, db, "Reads/Writes")
Rel(admin, spaAdmin, "Uses", "https")
Rel(spaAdmin, api, "Uses", "https")
SHOW_DYNAMIC_LEGEND()
@enduml
```
![tags](http://www.plantuml.com/plantuml/png/bLDHQnf147xtLsolVJYfyKnR21G25GrDG5Eh2Q5FCdSxwfQztMDdJllpEtiQjSbHoDF2p3VpVVFDx3lZ2bjhL1lcYhvcMO1TVsruK-SrOIYyOtJSBtoPLHOSrwMz8DRMvDdeoyKiXXwdawm4OWmIMewa0ep3qAy4s-aCjNw0zQAkAXyuJRQN_K7IKnzo7pI6aRS-N2VlzTNdmQUhfDk2lepebJHzXUtCC91tQTJPKyce9lOb1i4dC_ILHSKROEKGjQg2rtN196M7Aj2bSG8TnjSG1s3_gXPEIIG9uR6HsXfe0WvtAifKOb7bdPX5KJ73cguR_K9vz2Ib2eHYCHj69d3hsa93-Y2TIe4e8tw75HG70P6XE0ospq4atyc26WMDdUTqWvTqm_CvLJipd7lmHWb70_upDLGcAfZTHSBVi8NuteBJ5ac1jKfkJO14olgrALGQZx9_iXR_C3eotb7tts4_lgGQvwdEfVaO678WZ4HJKmHFViLgyNFIC7khwNcJFTLSeX8rCjtMcmBbNVbG0WjZlBCvsiEHxTVtI4YnJ_Db113pJKRcR4ylvtiF6crp14tPKp2CX_JpCHxNrSvnIhSJTHQtFvwMur_tm-dTQ3cv-NvpFqwxdM_eTFoAVm40 "tags")
## Supported Diagram Types
@ -168,10 +196,100 @@ In rare cases, you can force the layout using hidden relationships, `Lay_U`, `La
C4-PlantUML also comes with some layout options to make it easy and reuseable to create nice and useful diagrams:
* [LAYOUT_TOP_DOWN() or LAYOUT_LEFT_RIGHT()](LayoutOptions.md#layout_top_down-or-layout_left_right)
* [LAYOUT_WITH_LEGEND()](LayoutOptions.md#layout_with_legend)
* [LAYOUT_WITH_LEGEND() or SHOW_DYNAMIC_LEGEND(?hideStereotype)](LayoutOptions.md#layout_with_legend-or-show_dynamic_legend)
* [LAYOUT_AS_SKETCH()](LayoutOptions.md#layout_as_sketch)
* [HIDE_STEREOTYPE()](LayoutOptions.md#hide_stereotype)
## Custom tags/stereotypes support and skinparam updates
Additional tags/stereotypes can be added to the existing element stereotypes (component, ...) and highlight,... specific aspects:
* `AddTagSupport(tagStereo, ?bgColor, ?fontColor, ?borderColor, ?shadowing)`:
After this call the given tag can be used in the diagram, the styles of the tagged elements are updated and the tag is be displayed in the dynamic legend.
* `UpdateSkinparamsAndLegendEntry(tagStereo, ?bgColor, ?fontColor, ?borderColor, ?shadowing)`
This call updates the style of the default element stereotypes (component, ...) and creates no additional legend entry.
Each element can be extended with one or multiple custom tags/stereotypes via the keyword argument `$tags="..."`, like `Container(spaAdmin, "Admin SPA", $tags="v1.1")`.
Multiple tags can be combined with `+`, like `Container(api, "API", $tags="v1.0+v1.1")`.
**Comments**
* `SHOW_DYNAMIC_LEGEND()` supports the customized stereotypes
(`LAYOUT_WITH_LEGEND()` cannot be used, if the custom tags/stereotypes should be displayed in the legend).
* `SHOW_DYNAMIC_LEGEND()` has to be last line in diagram.
* Don't use space between `$tags` and `=` (PlantUML does not support it).
* Don't use `,` as part of the tag names (PlantUML does not support it in combination with keyword arguments).
* If 2 tags defines the same skinparameter, the first definition is used.
* If specific skinparameters have to be merged (e.g. 2 tags change the font color) an additional combined tag has to be defined. Use `&` as part of combined tag names. This convention can be used in other tools.
```cs
@startuml
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml
AddTagSupport("v1.0", $fontColor="#d73027", $borderColor="#d73027")
AddTagSupport("v1.1", $fontColor="#ffffbf", $borderColor="#ffffbf")
AddTagSupport("v1.0&v1.1", $fontColor="#fdae61", $borderColor="#fdae61")
AddTagSupport("fallback", $bgColor="#888888")
Container(spa, "SPA", "angular", "The main interface that the customer interacts with via v1.0", $tags="v1.0")
Container(spaAdmin, "Admin SPA", "angular", "The administrator interface that the customer interacts with via new v1.1", $tags="v1.1")
Container(api, "API", "java", "Handles all business logic (incl. new v1.1 extensions)", $tags="v1.0&v1.1+v1.0+v1.1")
Container(spa2, "SPA2", "angular", "The main interface that the customer interacts with via v1.0", $tags="v1.0+fallback")
Container(spaAdmin2, "Admin SPA2", "angular", "The administrator interface that the customer interacts with via new v1.1", $tags="fallback+v1.1")
Rel(spa, api, "Uses", "https")
Rel(spaAdmin, api, "Uses", "https")
Rel_L(spa, spa2, "Updates", "https")
Rel_R(spaAdmin, spaAdmin2, "Updates", "https")
SHOW_DYNAMIC_LEGEND(false)
@enduml
```
![merged tags](http://www.plantuml.com/plantuml/png/jLDXQzim5FpkNw5bOoIajHDlh6DGQ4ZBMaYxq3ICVGhFbkneaoMZzvpivq-Avj3KPh0FzHUPUwUxuvvzXGIMcaf5RwJELSC5snBL-2L9BEpZKjAsoHeKDZUQXAOuDrLIAz3-pZaILp9BvX_FbnvQto-I2f24TT1cxcw0rCB6jTUFPfm_GRbgwjfO6WvsqtWoE6Fl2aUR6sNivU0jl_WmIIyycXdBXNs1ZteqfYyr2lTaHLSZuBqQa_UzGXp4fsbNAE1TeGAKoY3_TRXHjkpFXyUnesCVGwpXZ0rMozd07Q3BHe7rhqzRmIf7OLAJi0NaWj4MY973ymR9LCA66UI4RE-MmtOIM5ibGOcNeTZHgTsCLr8xXyF9-ft1poII1JBsVoDeiMTjYSSOqvCOK4kVO7dd3N_23lnv2vehWGoKObc3ZeZ8b2bbpeR-WuoFoapy9g5H6esZ4vUmlR5_6tTCiOOqT9s-MjdZTlEzhQVFQqzVl_SsJDj5z2XK-EB20jOeq5iVVdCt3-EGzH-SpIA8_2rqNNEWBkdncTInW7vwjBhzzdrp_UDXTdyttonkljuyN0zTU1IZw4fetbJg3m00 "merged tags")
**Custom schema definition**
If the custom (color) schema is defined via `UpdateSkinparamsAndLegendEntry()` then the legend of existing elements is updated too.
```cs
@startuml
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Context.puml
!$COLOR_A_5 = "#7f3b08"
!$COLOR_A_4 = "#b35806"
!$COLOR_A_3 = "#e08214"
!$COLOR_A_2 = "#fdb863"
!$COLOR_A_1 = "#fee0b6b"
!$COLOR_NEUTRAL = "#f7f7f7"
!$COLOR_B_1 = "#d8daeb"
!$COLOR_B_2 = "#b2abd2"
!$COLOR_B_3 = "#8073ac"
!$COLOR_B_4 = "#542788"
!$COLOR_B_5 = "#2d004b"
UpdateSkinparamsAndLegendEntry("person", $bgColor=$COLOR_A_5, $fontColor=$COLOR_NEUTRAL, $borderColor=$COLOR_A_1, $shadowing="true")
UpdateSkinparamsAndLegendEntry("external_person", $bgColor=$COLOR_B_5, $fontColor=$COLOR_NEUTRAL, $borderColor=$COLOR_B_1)
UpdateSkinparamsAndLegendEntry("system", $bgColor=$COLOR_A_4, $fontColor=$COLOR_NEUTRAL, $borderColor=$COLOR_A_2)
UpdateSkinparamsAndLegendEntry("external_system", $bgColor=$COLOR_B_4, $fontColor=$COLOR_NEUTRAL, $borderColor=$COLOR_B_2)
Person(customer, "Personal Banking Customer")
System(banking_system, "Internet Banking System")
System_Ext(mail_system, "E-mail system")
System_Ext(mainframe, "Mainframe Banking System")
Rel(customer, banking_system, "Uses")
Rel_Back(customer, mail_system, "Sends e-mails to")
Rel_Neighbor(banking_system, mail_system, "Sends e-mails")
Rel(banking_system, mainframe, "Uses")
SHOW_DYNAMIC_LEGEND()
@enduml
```
![custom schema](http://www.plantuml.com/plantuml/png/dPHVRvim5CNV-HIKzI6LceGGag19aHeesYhbJvKiclQ4R7n3KC4WswZfjvy1RtXfkwfHNiBldkDxZf6uum8nKUMPSPNIEAi8c4SXIlvrE6JeUP2aubZXYWEB2og0Ya5SvCCoGxJszBaWMOg7WTj_hD5-jHpcY0jW4aL1xJY9GLcVRbnT1vlbPXijeeavDwqliyCOsvwbSRVXU3pnxAdEnmq7stD6hiwTXXy8zgPZdOzQ3c3ZAUu6wt3_OxjOjiDP_UjclZ8HZo306bTBi8CmSJIkGddsR8nYZQiI4zUPUPx6LMc7sBOhppVs9K42TayfBH53ELzGieG4A0cfO2yzgmJ62shTcjSu2OgiOFFk-YGy55Hqk2jNwmj6W9rvHdB0ZuWKpobDvfPW5LWt7uQ0am16KHQzcyQ_88sywuzNynSk87-pltj1V-SJPTzTxL-msgzN6u_D_VNYYeiY1tPhMYr1cUaZAYCbPg1cyhNicW0zt4vK7kbve7L247yzhL0wb2KAJwANepJhF66_VZQvKfu9wO6X7AHizUV_6sTl8TEIlqgrvy2bJAeY7yLFclJV93kWX9lGvE6cA9Hd3Mbon0Kxg_jVTsjzxT0AgLJ6xllcPtJ_QxrOFGJHClmMhkzxDyOTK59_b7u3 "custom schema")
## Snippets for Visual Studio Code
Because the PlantUML support inside of Visual Studio Code is excellent with the [PlantUML extension](https://marketplace.visualstudio.com/items?itemName=jebbs.plantuml), you can also find VS Code snippets for C4-PlantUML at [.vscode/C4.code-snippets](.vscode/C4.code-snippets).

2
samples/C4CoreDiagrams.md
Unescape Escape View File

@ -44,7 +44,7 @@ Source: [C4_Dynamic Diagram Sample - bigbankplc.puml](C4_Dynamic%20Diagram%20Sam
Source: [C4_Deployment Diagram Sample - bigbankplc.puml](C4_Deployment%20Diagram%20Sample%20-%20bigbankplc.puml)

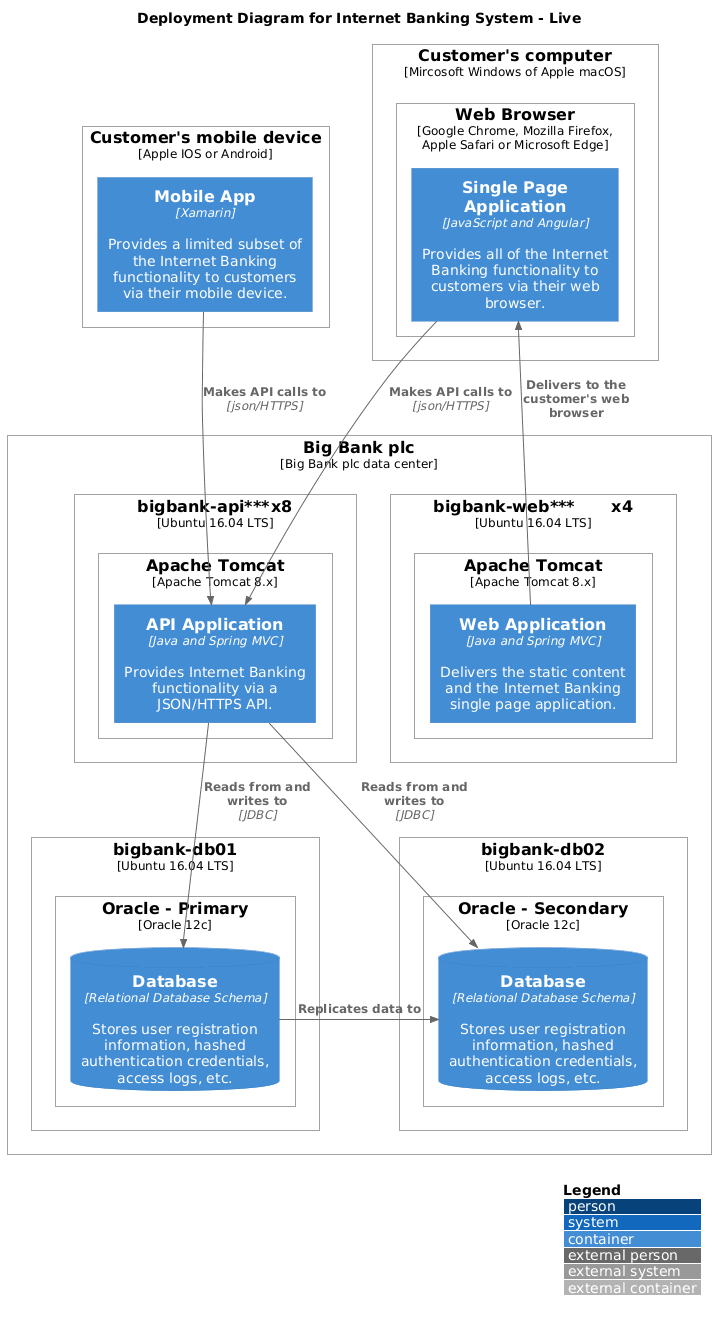

![Deployment Diagram for Internet Banking System - Live](http://www.plantuml.com/plantuml/png/rLNVJoD737xFN-7cXHy2SaIeElNfGa8FA87eDfHMgXHvPvpDz6PdLZEpWRIw_xssDX0MKkcuUxeyH3jUVxQ_psFlXvWmfBgqdP-CKxRM18kKglXBhnVm_gWmQL7dTQIWl4laqf7oPQ-ow0Hp69Es9kyDJmudOheTN_LAZ8a2csOZggnVbGAg9C4Er8xHOe2q89XxQ_szSGLOumZGQMYzDY7oamVE3jOhj7R5CPxAt9AXitCr-FFcTZeRPBFijxFfy7nthxCstLrCpsTNPn_FhaTix2IJBC4c08mC5W5BhYh01LCDZXASelii1MOh9bN28LoP9NKw6zZisclQhQmwWEwfAK00mCVkYpDeJ0YA971txzyEyEzb5EqOb9iYPymXLcP_V_-lzF1UGjtcDGiEnpyVlJk1gsds669R6AnGBOX10taWcFfIOUg-DC3xeuTDcEOtz2wXSHGuY170v086LMKD-nll9CObBX6aLLaLH9dnxqCnJu9V6atnjNHpRhg0qPgqWgLXD5ncDzUzy-bqaW6dEEhkFLNnfTFyRoEsbaRdxuwV2IN7jqha0oeh4jt80y4XJ88fCQow6zjnN_slFADyL-ViEiA4EKOIs2UosF24HpDaB7U9yZPBFb046IG8L9YO0eet63VtePHdxlu2uu8qO9qMNEjQTL21j1pHnWD0fIX6iBxW0oNrTl7wRV7wtoPU_xbw6Idlz1lrw_zW0kRFXRkdl1dFasyRp_vtpYVdPy0TvLyvdoEoPaaXWcpMcDXTmNgZYxUONuzkv3zBK651W9iqsnJxydefbbvA7DOn-PB2JWGs60wdQMaKDNmhosblCl011au7RxHGRbDjOEm-Rl2C4l0VM28pR2qV16jAaqX3hFD82VnyExFsKaeUrBhCA1jAC2QqwsNIsqWgNrPjbcAfPSjBnIOe7_qymPrnsjz7AQXXNQAwaNko_Qu5zgMmxl2fd9g07xsNZWmNmPSioTZ_Own5-DK4clk7WtNi3ESOZ8WwDYeq1PpfWXxJjVMD5SfyDRsUO47RhbIcWgcQgp9mHMqnj8MtzlkqvliCQzQizEPIyL9ukW3DDscCdpcXV9aKPuqSK2hvEthNV54OBI1czJR4xBOPAWQsviM3i5AR1ZyhTPrBqe3EPOSHwWZpu4kH2kw3IVIOy79qEcm3-b-Dc7tYXRc1DErXFuq9sPcTEX_8wRgq_m40 "Deployment Diagram for Internet Banking System - Live")
![Deployment Diagram for Internet Banking System - Live](http://www.plantuml.com/plantuml/png/pLPXJoCt4FsUNp5DAnqW812XwbJff0i9FK24H6meFQbID6jFDYvUUsLx0sbr_xtZtN1X8UYWz-L0Yko9tyoyDpDsFlg0BfIvRlsaZD2b99Y7KFZVEXs7T_kP2lCoBJqvOKqW4_Q5pJk5HXCnUpv8hT9E_sXl74tNmujEZZwGOzDqG8Msopo2YXZW7PI6qT40OKumirhREsKoqCeGe97G-5evpoiB71sq5QZradryJND3X5PFoWbcILaKreMjzemnAOhRzYxyacPzgwtxqFvP7CJ_zdQBlScbmLm9q9GHnrS-HfEmXIAe1GPUAWEQALKvRZFYelTvT3sPtfnDJgSN9vzEBWTRx2cee0dM-S10OUOmPv8EpbWvPoZ0CPhRo3TPiaOvxC65Mb2hjOPDBwsahKABNMWVgwm206_RJ_OWCI08YexRs_-sWF-UUf66GQdAKiRiOQ5sTdR-2lVlewlhjEJwmU6l-mT7S3597bniSeC5YZang5SjO69pWQ7zr03lz-_NRkg_lZK1MJR7JbG4ZC-WLnHQyNbbJVHnZWkiAfyKBYep_ACVpMDd5qgIVoxTZ7ieWb6hi8I5OZIS9wFBpkbaCaw0G-npPHyo-DAgFZVgiv96fWU7ZuIAsxTAP1qA7IKQLGkkwzYf7DsolROTTiMByWpIBPdoqG46JD5JX5sHnfedF9WXORbpZDycmJggUjM1eqpvuAhJe0mtN5wjTs6EVauIi0nppdMbEWX7CcvH-rr08SXxq3RZ3GNnTl6wJV6w6yNZ-GkO-G_hYTo6R-dPVIneGi8Q-LpIpOvVLhdxeyZyBF7N2fy-5loEqdgiZ_xVM7U_SwuvFWDkA7tbN0z8gmKvNrtmFl1n0Qk79PwEvkSZx_b34nIO4U0wpAPM_VByCirjJB5V-c1pSkyyi46nEqaB9QZcMsWEEqh0EkWPwQoIaNAJQWtZuyCQpwW8_XDpP8QDImj1grp5nyENgMScTXQPVUio2nR4AaqVRxQ8KQwPBvFUH5BOl6YoZ9OolWunO-M4zNOMu4OPQUzyJAXcdQCO9I-z8AdZi-HM5JwEkzhX9sjZHVfpPtEMP6Z_KLeZ_AuSpUpzxiftWZEM9eewLCBL2Pp8Z1x2DVNr1SQ9gsizvbflQgb4E5NKhT8pMQdHDONN-lkqvdw65MjMUjrKLwI_Da3zbWtnbWF65qrmLCyEOoP_UslgbuZH38giteQONjT3nS36lDYAbLWN-56ggrXL69bMjnfA3pEkJYNLdLE17WAU3uxxJK3trOZf5L-XQqXT7lBrhv5W-L0hEHtTJ0UVBtl3i_xwzz57ChBCzNy0 "Deployment Diagram for Internet Banking System - Live")
## Icons

13
samples/C4_Deployment Diagram Sample - bigbankplc.puml
Unescape Escape View File

@ -3,8 +3,10 @@
' uncomment the following line and comment the first to use locally
' !include C4_Deployment.puml
'LAYOUT_AS_SKETCH()
LAYOUT_WITH_LEGEND()
AddTagSupport("fallback", $bgColor="#c0c0c0")
' dynamic legend is used (activated in last line)
' LAYOUT_WITH_LEGEND()
title Deployment Diagram for Internet Banking System - Live
@ -19,9 +21,9 @@ Deployment_Node(plc, "Big Bank plc", "Big Bank plc data center"){
ContainerDb(db, "Database", "Relational Database Schema", "Stores user registration information, hashed authentication credentials, access logs, etc.")
}
}
Deployment_Node(bigbankdb02, "bigbank-db02", "Ubuntu 16.04 LTS"){
Deployment_Node(oracle2, "Oracle - Secondary", "Oracle 12c"){
ContainerDb(db2, "Database", "Relational Database Schema", "Stores user registration information, hashed authentication credentials, access logs, etc.")
Deployment_Node(bigbankdb02, "bigbank-db02", "Ubuntu 16.04 LTS", $tags="fallback") {
Deployment_Node(oracle2, "Oracle - Secondary", "Oracle 12c", $tags="fallback") {
ContainerDb(db2, "Database", "Relational Database Schema", "Stores user registration information, hashed authentication credentials, access logs, etc.", $tags="fallback")
}
}
Deployment_Node(bb2, "bigbank-web***\tx4", "Ubuntu 16.04 LTS"){
@ -48,4 +50,5 @@ Rel(api, db, "Reads from and writes to", "JDBC")
Rel(api, db2, "Reads from and writes to", "JDBC")
Rel_R(db, db2, "Replicates data to")
SHOW_DYNAMIC_LEGEND()
@enduml
Write Preview
Loading…
Cancel
Save
