--- a/C4_Context.puml
+++ b/C4_Context.puml
@ -46,6 +46,9 @@ skinparam rectangle<<external_system>> {
    BorderColor #8A8A8A
 }

+' Sprites
+' ##################################
+
 sprite $person [48x48/16] {
 000000000000000000000000000000000000000000000000
 000000000000000000000000000000000000000000000000
@ -97,6 +100,57 @@ sprite $person [48x48/16] {
 000000000000000000000000000000000000000000000000
 }

+sprite $person2 [48x48/16] {
+0000000000000000000049BCCA7200000000000000000000
+0000000000000000006EFFFFFFFFB3000000000000000000
+00000000000000001CFFFFFFFFFFFF700000000000000000
+0000000000000001EFFFFFFFFFFFFFF80000000000000000
+000000000000000CFFFFFFFFFFFFFFFF6000000000000000
+000000000000007FFFFFFFFFFFFFFFFFF100000000000000
+00000000000001FFFFFFFFFFFFFFFFFFF900000000000000
+00000000000006FFFFFFFFFFFFFFFFFFFF00000000000000
+0000000000000BFFFFFFFFFFFFFFFFFFFF40000000000000
+0000000000000EFFFFFFFFFFFFFFFFFFFF70000000000000
+0000000000000FFFFFFFFFFFFFFFFFFFFF80000000000000
+0000000000000FFFFFFFFFFFFFFFFFFFFF80000000000000
+0000000000000DFFFFFFFFFFFFFFFFFFFF60000000000000
+0000000000000AFFFFFFFFFFFFFFFFFFFF40000000000000
+00000000000006FFFFFFFFFFFFFFFFFFFE00000000000000
+00000000000000EFFFFFFFFFFFFFFFFFF800000000000000
+000000000000007FFFFFFFFFFFFFFFFFF100000000000000
+000000000000000BFFFFFFFFFFFFFFFF5000000000000000
+0000000000000001DFFFFFFFFFFFFFF70000000000000000
+00000000000000000BFFFFFFFFFFFF500000000000000000
+0000000000000000005DFFFFFFFFA1000000000000000000
+0000000000000000000037ABB96100000000000000000000
+000000000002578888300000000005888864100000000000
+0000000007DFFFFFFFFD9643347BFFFFFFFFFB4000000000
+00000004EFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFB10000000
+0000007FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFD2000000
+000006FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFE100000
+00003FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFB00000
+0000BFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF50000
+0003FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFD0000
+0009FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF2000
+000DFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF6000
+000FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF8000
+001FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFB000
+001FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFB000
+001FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFB000
+001FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFA000
+000FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF8000
+000DFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF6000
+0009FFFFFFFF8FFFFFFFFFFFFFFFFFFFFFF8FFFFFFFF2000
+0003FFFFFFFF8FFFFFFFFFFFFFFFFFFFFFF8FFFFFFFD0000
+0000BFFFFFFF8FFFFFFFFFFFFFFFFFFFFFF8FFFFFFF50000
+00003FFFFFFF8FFFFFFFFFFFFFFFFFFFFFF8FFFFFFB00000
+000006FFFFFF8FFFFFFFFFFFFFFFFFFFFFF8FFFFFE100000
+0000007FFFFF8FFFFFFFFFFFFFFFFFFFFFF8FFFFD2000000
+00000004EFFF8FFFFFFFFFFFFFFFFFFFFFF8FFFB10000000
+0000000007DF8FFFFFFFFFFFFFFFFFFFFFF8FB4000000000
+000000000002578888888888888888888864100000000000
+}
+
 ' Layout
 ' ##################################

@ -111,21 +165,38 @@ legend right
 endlegend
 !endprocedure

+!global $defaultPersonSprite = "person"
+
+!procedure HIDE_PERSON_SPRITE()
+  !$defaultPersonSprite = ""
+!endprocedure
+
+!unquoted procedure SHOW_PERSON_SPRITE($sprite="")
+  !if ($sprite == "")
+    !$defaultPersonSprite = "person"
+  !else
+    !$defaultPersonSprite = $sprite
+  !endif
+!endprocedure
+
 ' Elements
 ' ##################################

 !function $getPerson($label, $descr, $sprite)
+!if ($sprite == "") && ($defaultPersonSprite!="")
+  !$sprite = $defaultPersonSprite
+!endif
 !if ($descr == "") && ($sprite == "")
-!return '<$person>\n=='+$label
+  !return '=='+$label
 !endif
 !if ($descr == "") && ($sprite != "")
-!return '<$'+$sprite+'>\n=='+$label
+  !return '<$'+$sprite+'>\n=='+$label
 !endif
 !if ($descr != "") && ($sprite == "")
-!return '<$person>\n=='+$label+'\n\n '+$descr
+  !return '=='+$label+'\n\n '+$descr
 !endif
 !if ($descr != "") && ($sprite != "")
-!return '<$'+$sprite+'>\n=='+$label+'\n\n '+$descr
+  !return '<$'+$sprite+'>\n=='+$label+'\n\n '+$descr
 !endif
 !endfunction

--- a/LayoutOptions.md
+++ b/LayoutOptions.md
@ -89,7 +89,7 @@ One thing which is often ignored is the fact, that these software architecture s
 Without any proof

 * if they are technically possible
-* if they can fullfil all requirements
+* if they can fulfill all requirements
 * if they keep what they promise

 More often these sketches are used by many people as facts and are manifested into their documentations.
@ -140,3 +140,92 @@ Rel(web_app, twitter, "Gets tweets from", "HTTPS")

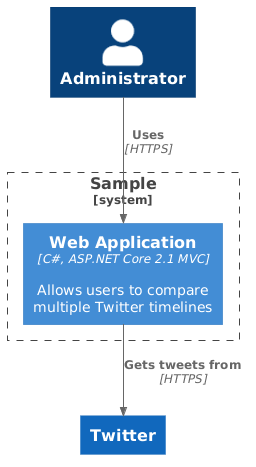

 ![HIDE_STEREOTYPE Sample](http://www.plantuml.com/plantuml/png/NL1DJ-j03Bplh_3hEpIL-XBrYHEdXX1H90fHau8uHTl4a1NxiTfr52h4VsUZbXPnikmPpuozzCGTzKh2wlOwhyigt-GFrNEHGycLbSZ-2Dt8laNeYAo_J1B7X_XLKDVlUe-kCPfGKzmObRm9rtIUkYIx-5T8hccxlalmFU0jjc5OPu7CXKONs-38s2_BQCPOWSuR7V5M2Js7IJfMuSbnCcuoO-NU4whwolIwvMuVDOivJ0z9fpFuO0009vTem5tDhGqwJxY3r5ef6ax2w4aOPN_da9P5V9zNOSKX_8yNi7xCHYoLqWmUnWCza876ACi3HVMIX9K8rI28q049XL9ez27Rvp5TH0Smw1nf0MGRbDzNdMDjFVhHRrLLHHbO8-c4dcLka7neSImlpgYVAylmtV6PNm00 "HIDE_STEREOTYPE Sample")


+## HIDE_PERSON_SPRITE() or SHOW_PERSON_SPRITE($sprite="")
+
+With the macros `HIDE_PERSON_SPRITE()` and `SHOW_PERSON_SPRITE()` it is possible to change the person related default sprite. `SHOW_PERSON_SPRITE()` is the default.
+
+- **HIDE_PERSON_SPRITE()**: deactivates the default sprite
+- **SHOW_PERSON_SPRITE()**: activates the default sprite "person"
+- **SHOW_PERSON_SPRITE($sprite)**: activates a specific sprite as default sprite
+
+"person" and "person2" are predefined sprites which can be used as default sprite too.
+
+```csharp
+@startuml predefined sprites Sample
+!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml
+
+Person(userA, "User A", "with predefined sprite person", "person")
+Person(userB, "User B", "with predefined sprite person2", "person2")
+@enduml
+```
+
+![Predefined sprites Sample](http://www.plantuml.com/plantuml/png/XOxDIiKm48NtUOfuLrxmDY2kNFLdgr2GhYLjHXj89c5cGb_VH2m8BbpDOVZupkbPB4c9GMS21nyUmMdEv0LOlzcO0wWxZrie3lGkaldP6B97z-bbBsjXe2sX04gtfMXoiDXiDnON_6gcfzlSNilhYucM1QY-tgU4OciJTRcoIir0dF2-oOO7VLdgrSEbfgEM_1scypVVW9zq_QqOJyNuh-An4MUygXxGrK5V "Predefined sprites Sample")
+
+
+**Using HIDE_PERSON_SPRITE()**
+
+```csharp
+@startuml HIDE_PERSON_SPRITE Sample
+!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml
+
+HIDE_PERSON_SPRITE()
+
+Person(admin, "Administrator")
+System_Boundary(c1, 'Sample') {
+    Container(web_app, "Web Application", "C#, ASP.NET Core 2.1 MVC", "Allows users to compare multiple Twitter timelines")
+}
+System(twitter, "Twitter")
+
+Rel(admin, web_app, "Uses", "HTTPS")
+Rel(web_app, twitter, "Gets tweets from", "HTTPS")
+@enduml
+```
+
+![HIDE_PERSON_SPRITE Sample](http://www.plantuml.com/plantuml/png/PL1TgzD047tVNp7MXvj2Ry8LdtowCGPRi3KqgJw6JJBQXVrOTYU48lvtPsbj1VCoPCwPyx6laMIWsMZOxZxLVLCVsw-7lcsEkww6LXglKRnHTjJpX70cyl53KGIvv3yLdUTXZXX6PmajvQCpXTVI9hNdI9DMGr6zVsxIwhJ_KXWP2GEl-eelfB8OSizS8VwtpjP2D1YYivcSZB8RM9LfgaX1aWkhjMWlaT3q7zri9naksVYoWQThugSr_1B0tzqeMt3efVUiynq7ABtNQfIad5tngdgxWR9jyaFTyKb0U9U_mFvRbR1IQxT4I4KZa0DkwILJpAn9iHTqYoB20AGCQlQAdEttBLr6Lv1rRZG6nH7rtrQFMAU8CVbjkwvfcPL8T_GXynafyY-cyICuy-_9AzeflUSV "HIDE_PERSON_SPRITE Sample")
+
+**Using SHOW_PERSON_SPRITE()**
+
+```csharp
+@startuml SHOW_PERSON_SPRITE Sample
+!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml
+
+/' Not needed because this is the default with sprite "person" '/
+SHOW_PERSON_SPRITE()
+
+Person(admin, "Administrator")
+System_Boundary(c1, 'Sample') {
+    Container(web_app, "Web Application", "C#, ASP.NET Core 2.1 MVC", "Allows users to compare multiple Twitter timelines")
+}
+System(twitter, "Twitter")
+
+Rel(admin, web_app, "Uses", "HTTPS")
+Rel(web_app, twitter, "Gets tweets from", "HTTPS")
+@enduml
+```
+
+![SHOW_PERSON_SPRITE Sample](http://www.plantuml.com/plantuml/png/PL5DQzmm4BthLqpTWxsmiKdfgQUuPcaApSQidUPeP6lI5UX3I6DCAFtl7JLfjb1V1i-yz-QzqKqY6Mcr1eRR-yUfFvo6--CqzAUlum46QOD1yKwxnQmAuKmKqgUcYNAhVsWwh_EQC2xU4Jgg5s-ROAJBQbU9bD5pqtsywdFhuUvROsKYZDoQEcP8xJ3MWR52D2KSFO53LAXWnaMoBj1P9z29AuB29xaQWestGWfH4q8HC2Rl2YWRyR_vQYT4_mTGIMMrsqFHvgeJHKa-5ZinFBCXEttsgrCoFbVBzHxAbypb3duAuE_DQhNXFCaGMESHPsX3C7gHfDa0jxhtUsY7lZuUHgP4X0_rDTnzx_AiDSPl2VAf4f07lbEG3B4SIFCk63aLOGJI5WtlIkpjrwkxYbw6hFCAuw4ueVcRwcBh8J6Jw-quzWEZCkXjUf7vWfJu5tDvYjx-Ixb1f_AB_0O0 "SHOW_PERSON_SPRITE Sample")
+
+**Using SHOW_PERSON_SPRITE(sprite)**
+
+```csharp
+@startuml SHOW_PERSON_SPRITE(sprite) Sample
+!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Context.puml
+!define osaPuml https://raw.githubusercontent.com/Crashedmind/PlantUML-opensecurityarchitecture2-icons/master
+!include osaPuml/Common.puml
+!include osaPuml/User/all.puml
+
+SHOW_PERSON_SPRITE("osa_user_green_architect")
+
+Person(admin, "Administrator")
+System_Boundary(c1, 'Sample') {
+    Container(web_app, "Web Application", "C#, ASP.NET Core 2.1 MVC", "Allows users to compare multiple Twitter timelines")
+}
+System(twitter, "Twitter")
+
+Rel(admin, web_app, "Uses", "HTTPS")
+Rel(web_app, twitter, "Gets tweets from", "HTTPS")
+@enduml
+```
+
+![SHOW_PERSON_SPRITE(sprite) Sample](http://www.plantuml.com/plantuml/png/ZL1DQzj04BthLspSGsIm9H9wwYckC4sXIOIbD4UnbYRnmduiCoDKK_hVEuiLkvGUgelOUM_UU_FkY3NowAngxfzUkdgxQvuUkwRUVMstEKKq34lLQ1SjP5V6ztOSG1sO8tqgIzHJyMRuCEv70ko3P_1SzC6LqMgVLDV4WpNxilguhjFe-U5RwJGne8owActyu28ACxiQuDLuK85qBU__CAbGqm46P_nGlgklGmHFq8-I_AYnFnY6daU4sxMHNPhTBxVCTcKLd0j-Zl8t-4mIM5jxWhD_LBKGQfS2Tcy8uBkpzMAPPJKW1P_h57Mb5flqDyIeEQ3WpP4ONFSvZ7xGUCpxcvMwFdL-lLG_CoLVgaeR3vXFiEzqZABp0dkrYT6QNhC9VY6ZwiDARPgwUDosieAWReiRzV2zIjZ6sZ2HIY59SL1IOTH2SQDb8rwgdGmpe6BZm8eNIRPVSxgSJw3epBHqs0xi-rMNM58M9R_xjgqROINI6Rt8V04cUKBwlM9mVwxSWHzIqxy1 "SHOW_PERSON_SPRITE(sprite)")
+
--- a/README.md
+++ b/README.md
@ -29,7 +29,7 @@ At the top of your C4 PlantUML `.puml` file, you need to include the `C4_Context

 To be independent of any internet connectivity, you can also download the files found in the `root` and reference it locally with

-```c#
+```csharp
 !include path/to/C4.puml
 !include path/to/C4_Context.puml
