@ -89,7 +89,7 @@ One thing which is often ignored is the fact, that these software architecture s
Without any proof
* if they are technically possible
* if they can full fil all requirements
* if they can fulfil l all requirements
* if they keep what they promise
More often these sketches are used by many people as facts and are manifested into their documentations.
@ -140,3 +140,123 @@ Rel(web_app, twitter, "Gets tweets from", "HTTPS")
## PERSON_SPRITE_NONE(), PERSON_SPRITE_ACTIVE(), PERSON_SPRITE_C4(), PERSON_SPRITE_3D() or PERSON_SPRITE($person)
With the macros `PERSON_SPRITE_NONE()` , `PERSON_SPRITE_ACTIVE()` , `PERSON_SPRITE_C4()` , `PERSON_SPRITE_3D()` and `PERSON_SPRITE($person)` it is possible to easily change the person related default sprite. `PERSON_SPRITE_ACTIVE()` is the default.
- **PERSON_SPRITE_NONE()** : deactivates the default sprite
- **PERSON_SPRITE_ACTIVE()** : (re-)activates the default sprite
- **PERSON_SPRITE_C4()** , **PERSON_SPRITE_3D()** : activates one of the other prepared sprites
- **PERSON_SPRITE($person)** : activates a customer specific sprite as default sprite

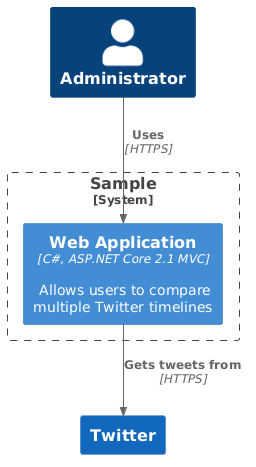

**Using PERSON_SPRITE_ACTIVE()**
```csharp
@startuml PERSON_SPRITE_ACTIVE Sample
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml
/' Not needed because this is the default '/
PERSON_SPRITE_ACTIVE()
Person(admin, "Administrator")
System_Boundary(c1, 'Sample') {
Container(web_app, "Web Application", "C#, ASP.NET Core 2.1 MVC", "Allows users to compare multiple Twitter timelines")
}
System(twitter, "Twitter")
Rel(admin, web_app, "Uses", "HTTPS")
Rel(web_app, twitter, "Gets tweets from", "HTTPS")
@enduml
```
**Using PERSON_SPRITE_NONE()**
```csharp
@startuml PERSON_SPRITE_NONE Sample
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml
PERSON_SPRITE_NONE()
Person(admin, "Administrator")
System_Boundary(c1, 'Sample') {
Container(web_app, "Web Application", "C#, ASP.NET Core 2.1 MVC", "Allows users to compare multiple Twitter timelines")
}
System(twitter, "Twitter")
Rel(admin, web_app, "Uses", "HTTPS")
Rel(web_app, twitter, "Gets tweets from", "HTTPS")
@enduml
```
**Using PERSON_SPRITE_C4()**
```csharp
@startuml PERSON_SPRITE_C4 Sample
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml
PERSON_SPRITE_C4()
Person(admin, "Administrator")
System_Boundary(c1, 'Sample') {
Container(web_app, "Web Application", "C#, ASP.NET Core 2.1 MVC", "Allows users to compare multiple Twitter timelines")
}
System(twitter, "Twitter")
Rel(admin, web_app, "Uses", "HTTPS")
Rel(web_app, twitter, "Gets tweets from", "HTTPS")
@enduml
```
**Using PERSON_SPRITE_3D()**
```csharp
@startuml PERSON_SPRITE_3D Sample
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml
PERSON_SPRITE_3D()
Person(admin, "Administrator")
System_Boundary(c1, 'Sample') {
Container(web_app, "Web Application", "C#, ASP.NET Core 2.1 MVC", "Allows users to compare multiple Twitter timelines")
}
System(twitter, "Twitter")
Rel(admin, web_app, "Uses", "HTTPS")
Rel(web_app, twitter, "Gets tweets from", "HTTPS")
@enduml
```
**Using PERSON_SPRITE($person)**
```csharp
@startuml PERSON_SPRITE Sample
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml
!define osaPuml https://raw.githubusercontent.com/Crashedmind/PlantUML-opensecurityarchitecture2-icons/master
!include osaPuml/Common.puml
!include osaPuml/User/all.puml
PERSON_SPRITE("osa_user_green_operations")
Person(admin, "Administrator")
System_Boundary(c1, 'Sample') {
Container(web_app, "Web Application", "C#, ASP.NET Core 2.1 MVC", "Allows users to compare multiple Twitter timelines")
}
System(twitter, "Twitter")
Rel(admin, web_app, "Uses", "HTTPS")
Rel(web_app, twitter, "Gets tweets from", "HTTPS")
@enduml
```
