#134: Legend fill whitespace with SHOW_FLOATING_LEGEND() and Lay_Distance() (3 - legend is reserved; LEGEND() is new default alias)

C4.puml

@@ -555,8 +555,15 @@ endlegend
 SHOW_LEGEND($hideStereotype)
 !endprocedure

+' legend is reserved and cannot be uses as alias of SHOW_FLOATING_LEGEND() therefore
+' LEGEND() is introduced. It returns the default name of the floating alias "floating_legend_alias"
+' and can be used in the Lay_Distance() calls
+!function LEGEND()
+!return "floating_legend_alias"
+!endfunction
+
 ' enables that legend can be located in drawing area of the diagram. It has to be last call in diagram followed by Lay_Distance()
-!unquoted procedure SHOW_FLOATING_LEGEND($alias="legend", $hideStereotype="true")
+!unquoted procedure SHOW_FLOATING_LEGEND($alias=LEGEND(), $hideStereotype="true")
 $getLegendArea($alias, $hideStereotype)
 !endprocedure


LayoutOptions.md

@@ -107,7 +107,7 @@ SHOW_LEGEND()

 ![SHOW_LEGEND Sample](https://www.plantuml.com/plantuml/png/JL5Dgzf05DtFhxYr2oDeWgMhhfgceWkreObr6IR9RHsOZs7cXY3b_VTtWpurcqlEn-4Svdia6MWm6ghThtEptsmtnvzGIUCrYa_ATdhe4Iv4FdxBiY37z9-Yoz0E4KFdBA6bj7CcyrhQAMOLgTUgpOglgtA2JeTzPcGa30mr1JkaiXXIpreXIWpHsKJsHjabpFBfgaX1aWkpXQYkR3JD3pVONePhqgsNCBzrco_Wlm3-7f79Y6qZlUUSCxQGUwzL9qavEsEe-Bo4l2hJuwPcIq3uagxXyAUOk5nhDqQO9aKW1xp7IvQOGPFo6g4U5H4686LGAukHkxtTsoLq8pddBcDI_4RziUfPwnJPoNTNrsN5gadqO9ynMwJ8lpYTly6PLujuUQLa8Tu1 "SHOW_LEGEND Sample")

-## SHOW_FLOATING_LEGEND(?alias, ?hideStereotype)
+## SHOW_FLOATING_LEGEND(?alias, ?hideStereotype) and LEGEND()

 `LAYOUT_WITH_LEGEND()` and SHOW_LEGEND(?hideStereotype)` adds the legend at the bottom right of the picture like below and additional whitespace is created.

@@ -132,9 +132,10 @@ SHOW_LEGEND()

 ![Layout With Whitespace Sample](https://www.plantuml.com/plantuml/png/LSwnReCm40RWtK_XCZbI0qkdJca1jGDjew2A4HdxL91iOzbdjNdx7eb4meJlk_y_SOWe0oPhU2FFSqBUJJZoRfmGefSAU2kjDy0U9gTCqi17H1-VYoB8t_o7icb84OAQ7OB3NCssy4QwvU8-eZRJK9HF--D2tnzDOML424HzIGqvEGYvfonZHmXnTa8-ykpwv2_PZgqfCT1YdVXhHYE26Xs5sZCTjK8HNP-yt5JrfbhTLrVkwpyKG1lwvloMhk_Jx0IcFot_E90gQKmaNR0I98emHRWPWTuObGbWCQybNfYrxrzTtzHlzMSbTkm0JYTh_W40 "Layout With Whitespace Sample")

-Therefore a floating legends can be added via SHOW_FLOATING_LEGEND() and positioned with Lay_Distance() that existing whitespace can be reused like below.
+Therefore a floating legend can be added via SHOW_FLOATING_LEGEND(), positioned with Lay_Distance() and existing whitespace is reused like below.

 - `SHOW_FLOATING_LEGEND(?alias, ?hideStereotype): shows the legend in the drawing area
+- `LEGEND()`: is the default alias of the created floating legend and can be used in Lay_Distance() call

 ```csharp
 @startuml Compact Legend Layout Sample
@@ -152,11 +153,11 @@ Rel_D(c, d, "uses")
 Rel_R(d, e, "updates")

 SHOW_FLOATING_LEGEND()
-Lay_Distance(legend, e, 1)
+Lay_Distance(LEGEND(), e, 1)
 @enduml
 ```

-![Compact Legend Layout Sample](https://www.plantuml.com/plantuml/png/LP51Q_im3CNl_XJ-z-J2lmc3dNPgbsJT86jBkx6ZSMtH1cp7s0fRl_ta5TBcPFcdzuHuMYPK4GTdUTMxe3Jo5axW3M_LfH-G7vGB5jY_pcix6E1dn92UoZAgx-BKuNau3WcYxZs2nqBthWnM-JnmaT3OxbXMZujTHf_lRUbKGeY4P4KErNc8HI0jOpk8gVT2_UUpQybNipaRLU98ZV77dsVqHT1dJwB3XOOweGbTIrvDh6PYhU-j8vRD3mgW3hq5lwcRUpNRWvNxl6FUHYjh4z4CQq544wGmReo0cJ0o4u3CWb7uXzdXTVibNzhjwkDjivPjisusjPWpob_M7Lt7Qn0st-HgVPYp9TKKsYy0 "Compact Legend Layout Sample")
+![Compact Legend Layout Sample](https://www.plantuml.com/plantuml/png/RP7VQ-em5CVVyrUavS9juTwMmPu60vtjtA1JqOqzXfWURLXC9Jbb-j_lr6gri9Ss-Nn_d3OPUPGEcvrXWRRAD2Nm2d7l7zBKoUzagx5greq7fsgBO35HzIxzqavL7gjqSlz_OQJ5ZxSYXGFf9PG4nOJCKbjmoRwjPcm1pjSsalzus2tvE8nPRulM9FGx_XJI5a5LbaoheqVOHOfGj-IJGRGSHBFRQ8z5Vi08IA5tmg_k_DRDbc34ilt6DL4bZV54MvX5H1H1EeWh8r0EsJ8Y02tRbn9Fc0MRnYhKzCT5FirdMHIpm04spl9mOsg9scw5WItOCcG1FIz-jdgPVuhdOZv-VvrDnJbzAObP8OyYqtHzLa6FJ-FlQ2pxouC_7UMFFEm62Eb0XYJzMdssnwGFki_yKZsY8hhK7m00 "Compact Legend Layout Sample")

 ## LAYOUT_AS_SKETCH()


README.md

@@ -321,7 +321,7 @@ Rel_L(x, s4, "uses")
 (In combination with [SHOW_FLOATING_LEGEND()](LayoutOptions.md#show_floating_legend)) a greater distance between an element and the
 e.g. floating legend could be required that all e.g. corners of the drawing area can be reached.

-* `Lay_Distance(from, to, ?distance)`: Sets the distance between `from` and `to` with down alignment. (Lay_Distance(from,to,0) equals Lay_D(from, to))
+* `Lay_Distance(from, to, ?distance)`: Sets the distance between `from` and `to` with down alignment (Lay_Distance(from,to,0) equals Lay_D(from, to)). The default alias of the floating legend is LEGEND().

 In following sample the floating legend should be in the left bottom corner of the drawing are.
 (The normal SHOW_LEGEND() call requires no extra Lay_Distance() call and the legend is automatically drawn below the diagram on the right side)
@@ -347,11 +347,11 @@ Rel(spa, api, "Uses")
 Rel_R(api, db, "Reads/Writes")

 SHOW_FLOATING_LEGEND()
-Lay_Distance(legend, db, 1)
+Lay_Distance(LEGEND(), db, 1)
 @enduml
 ```

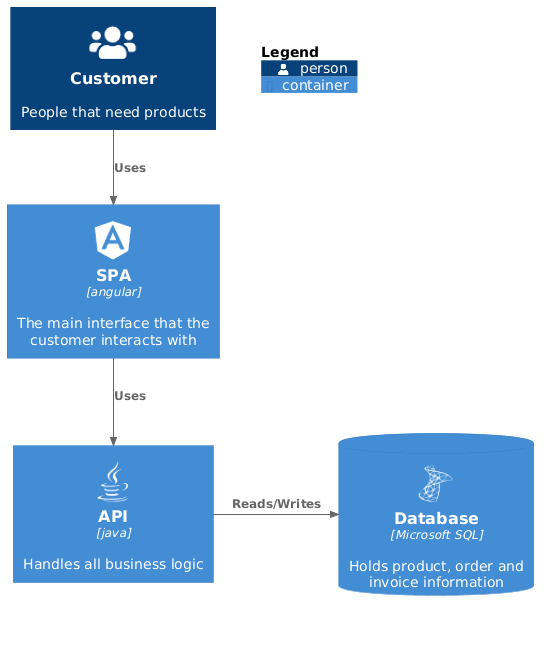

-![db below legend, 1 unit distance](https://www.plantuml.com/plantuml/png/hL5DZzem4BtdLtXH3o0jH5NRIwLAYu3THUA30bkEqH0FuCgnKyy4r7_VCGcxKQjAFVHa-ytCUtvl7eWXS5NOvCwut5OQrOcvfCzf6k0oE1e-LVkACEJUCJeUvBv8ImikplI9jJNxTFInluhGotoM5a2CGQ1i91DW78P16VcJEuq7UQhnvDjqj5ni_a68gn9q-F0cQAJQFqX7dyfW6Eccf_4SQ_IgyhXSR8UxoMOvd_nNeIi65oHVOF_JBRKtLocuOsMXCVrd-JkSuM-rWdxOZ32SyVVnbfiq_fsQJ5TozQuReNlL6LN4li3GaViAVMbHyGbOEKIjok1rbJD9yLtjwKldIjNf9Q-hwb89ChnP3ID7OoLUjoTKXRGeunZ30VA6cWNF6zcw1gAXBf9oM-Z6r9Q2qWZnS3MD_36MU3w3qnP9WRLAjYIDHChweydRTB6xpJNUT_LUfiV0i0V2o3GtUV3a3wmsNsTNQcyrtMAuLpve34havDjdRtAKy-130MoyQukrjYAQoHfjatUTrGjXZ332Lo3QQgFPkdPw_U0QGLEwYyInd6oUbxliSROSRgUBfsmsUPeinjrUCeEVsTWGWyknQ_68JjS4xtl9Wpnazxy0 "db below legend, 1 unit distance")
+![db below legend, 1 unit distance](https://www.plantuml.com/plantuml/png/hL5DZzem4BtdLtXH3o0jH5NRIwLAYu3THUA30bkEqH0FuCgnKyy4r7_VCIIxKQjAFVGKvptFUtvl7eWXS5NOvCwut5OQrOcvfCzf6k0oE1e-LVkACEJUCJeUvBv8ImikplI9jJNxTFInluhGotoM5a2CGQ1i91DW78P16VMJEuq7-LNZoRVfQBdO_8CHLoNeyE7Dq0ZRFyYDFfN1C5BZf_4SENfrULmkjiFTPBESJ_whqHM32v8liF-fQUqjLGhkM5ceG_z9VuSp_8qhw8VD2CCPVnjlfqdZswdkT2L7xxeHkbUTKKNi2mmTEQ_GbnOLdu2LGzIg35vNEPEGxswPldIkKfrUyhggBfKWmvlLC6hKKU9nUq9Lo1Lb76CuG5vBi-1vRNlZG3pKHLfk6pLARIieZGWFLzEe7sk9tsTmsY8fi5R9bkGYaRB-QFAsNBpTrXhlktelqsDWs0DXL9gRF7Zo1rQRhxEhjBUQcXhkbGyQWn8xUVRPcnpbU_2X03RUjSrQMn7FP8ssxllMrGiX2HxXAn1ZjT5iVKjwVU0QGLEwYyAHJZRFortsE5iEjzF5KpQRF4qMusulcS7FR6o8mUNORT2RnFjUye1Eo_P_0G00 "db below legend, 1 unit distance")

 ## Layout Options


percy/TestFloatingLegend.puml

@@ -18,5 +18,5 @@ Rel_D(c, d, "uses")
 Rel_R(d, e, "updates")

 SHOW_FLOATING_LEGEND()
-Lay_Distance(legend, e, 1)
+Lay_Distance(LEGEND(), e, 1)
 @enduml
