# C4 Model Diagrams

The following samples are reproductions with C4-PlantUML from [C4 model core diagrams](https://c4model.com/#coreDiagrams) created by [Simon Brown](https://simonbrown.je/).

- [📄 C4-PlantUML](../README.md#c4-plantuml)
- [📄 Layout Options](../LayoutOptions.md#layout-options)
- [📄 Themes](../Themes.md#themes)
- samples
  - [📄 C4 Model Diagrams](#c4-model-diagrams)
    - [Core Diagrams](#core-diagrams)
      - [System Context Diagram](#system-context-diagram)
      - [Container Diagram](#container-diagram)
      - [Component Diagram](#component-diagram)
    - [Supplementary Diagrams](#supplementary-diagrams)
      - [System Landscape Diagram](#system-landscape-diagram)
      - [Dynamic Diagram](#dynamic-diagram)
      - [Sequence Diagram](#sequence-diagram)
      - [Deployment Diagram](#deployment-diagram)
    - [Styles](#styles)
    - [Icons](#icons)

## Core Diagrams

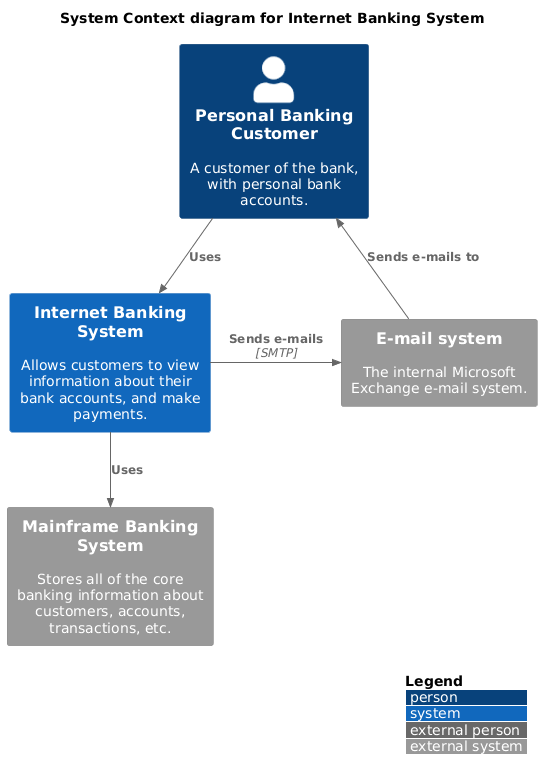

### System Context Diagram

Source: [C4_Context Diagram Sample - bigbankplc.puml](C4_Context%20Diagram%20Sample%20-%20bigbankplc.puml)

![System Context diagram for Internet Banking System](https://www.plantuml.com/plantuml/png/VLB1Zjem5BpdArwvb9KWgQeUgfvsbqRjIh151LJr53dcaLWuTcI_BF3tVGv95hgqj_XvPjxCEFUUXAEcqj4xPQHkjWWbKUs_98aJXxXGL3Pvuz59QmWDnT9MIQs52PoffwrMUJBxD5s6qMOnJru-nf_Z3ppAPe5nfBWEwk-XCKojM0AeHDXPhUr1cGAqCWZ2RE7gMZdFNnPuDMWhXTOdrXWy_YqVpHz-_zYiirzFw-_PFFsMFdyTtqKHAT88gvCdhA0Zm5Q9mecABJXuuf4pIF0ep3wuEMEZQ8dEMpEMZITRePl0w3mHUe3EkhiHNpv0ZmIxQnFaZ9h0WVk3kcU66GWfRMF8nwExwBnjd9yLCzyUMUuVjjfDeJS_hFEXf1U51r260rM2b3KWSjkqHIftlNJIDbs9FK8jJg7kraTd94kFDAw4qgzEqcauWn_shpcRQkrne8MIpdgx8qYFiXIcGC1Bmcl6Njhik7fadKN_VIFZYgn33_peVPkI1z3LT2FfqCRa8YavORoG0SOd9Dac_OdwubNVDB_nw1d6gEnHoFq5zBgN5PgjxyA6D-WupwYAChVkpPF-XzqcNgoNPubRpA6qpjqzq_cl_mC= "System Context diagram for Internet Banking System")

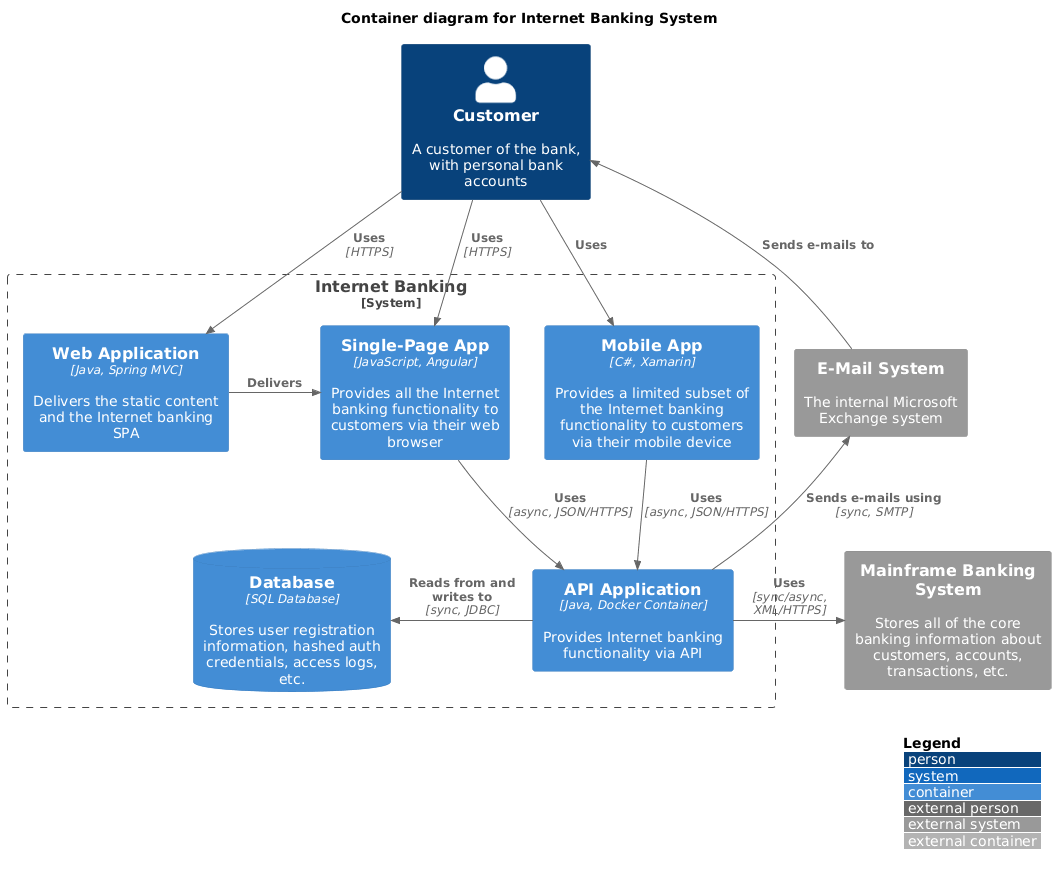

### Container Diagram

Source: [C4_Container Diagram Sample - bigbankplc.puml](C4_Container%20Diagram%20Sample%20-%20bigbankplc.puml)

![Container diagram for Internet Banking System](https://www.plantuml.com/plantuml/png/dLLDZzCm4BttLmpbG5TAMq0S42UwRSKkRBjXqsNX54qSjxLmxCXssgqG_vrnce-cYq3Ga_tYUVCyyyPzRnqQLsIozqme9ekKmzQvtBuRZmtkHnlXjaLIM6wOLeuhDs8w6-SIbOyPMfTAaOodRuQXX-uND-FTwz7RqKk2uYb5e53SZ7BF_m8AHS4PaO3RSbXhAVLUg0r8EWIeKkXy5iRIIWCb1waPIdaWZaRbqmJqzMRoxVP-5QzkmtXs-x0SNBJO98gZJ_FLz8h02dguNbt5D_CFy-MCm9uJJX9lJGgfm8t1Z8GQkARB6yKTNABwxZL71-jurkk5t5Yj1gomJcVS131jLlq9r33eTNcfXA83s5DH8Iy3KPOO86EwKCxsISUHEhua84Lp6B1Nn7Kke7y1Ftf0lqRlOC-J6FES3Z_m12PvBWL39xJg4_GHTnX0b1ilVl5bwh4Pbs97Caffv0Cd65HjBjlXuIPlKbyyd938RcQR4tS_ei-I3qFSS9-zpXen8t8Nm4Hj2ed6mw7HEv5o2zJKtsTParUyT9J27RmBwafQs0dqCS80NHWIe_VapYUICfq8oQjwBCfDBMhwF82lc26LeYk6Z9W9nrEmHM99JDMq_nDt500ftmd6p-NDaa6A3XEqtFUXMderqUSRwEoTDgJDJo0OlX7McRAd81JvCYlN0MpHRaat5cGiPdXA7HGeRU1znQsb-TdGXZisUbAe1DbthbAgbF2M3Qz_xvoPfcEcZUjKxYyLyaKXOahzit7t_D4DU8P2nhO4Y6u-ND2-cYpFlwBYYvAQncGXcD5MhntC7zaM5Pdi64cq9voLWfQLEDMQnfYVZUv9SRqBgrup0ffRd9GOCD65QniTD1CR07L4MIplsnQvTyVboQlGpkQzvTRdlbgjmeWETiyT9-dFPphMBeyUqyLBBZRRH9-y14UwUiuhfXBijhrEYFQWM00Vezlb-3JvQSf_YemlwNGhh3Lzb-MEOsfXRNHMFZnxGsD8pvBsp1Nnx79QtzDpdjJZp4OHqLhWGu-M7AsGCyTrDNJZ2kiVsIPzj5Y55L5pcKxu4z_LXV7nuwewN-d_iIxEUmhr_rg_00== "Container diagram for Internet Banking System")

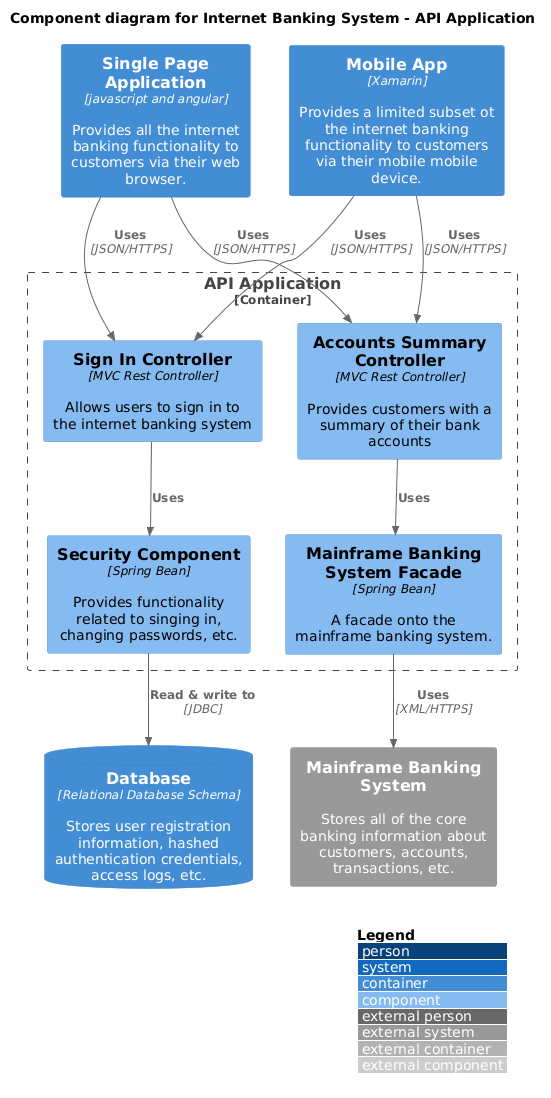

### Component Diagram

Source: [C4_Component Diagram Sample - bigbankplc.puml](C4_Component%20Diagram%20Sample%20-%20bigbankplc.puml)

![Component diagram for Internet Banking System - API Application](https://www.plantuml.com/plantuml/png/fLN9Rjim4BthAwO-j3RWs4NHGz5JlAHDWYn6x7Gv6IEAbjbo4KZAhb7qtpkaR4bsWY90Smb5lfbvy-QHFdSUhI-LJ5u9pMIPSLXxNxYFmw75xI0NVbscfUEM6UsvzWDcrB2Gg4FCcVEP5Ebmylvi5hOURs-6ctU33uEtjBMS65KO7MAAaFyDb9g25Ms0NtDO6IdDLkWSfD0SK6TmT2oievK1AWxIC9HoHpbgbayB93UZx_UFY-NNgyNbykRYyyNTjDjB4Y-y9FW12vd0tAAY-XQkg2UhkOSnwf-1odpdF5Tm1gFP5OoAGWg6NXYT91Fg7ucexRe2-z2P4vpopZ3dRM27ZdxW1Xspel2nAzHvAT66avar6v5n1zHDx58S2AHx0YiIAUH1AVmkjCzAvutYri56O8WH5hOyXTIQBOrbqEcrgAd0xDQaGaPIeUGtL6Y5FgvEaYlXUGQkJ1rLD_u_sAYgtlvVnZU2yIDQqxIRfLH_YXvJT3nmUU0Igynms8OvMtE5uNJkZIMUmNTWUIwSjn5D36biAgxxi4QtfXwm91xQxmS0pF8iVA9qVK36k7Fadvm-k6U1LpNZvSKltrMf2u8HonLPWf_OeCKapCkieaYCDcg1Mdm0KrFwHg5Ot9JQquheQuTHoeP78z1oJBWCxQwBXQ2Y9-RhzE1t0lHNcxZhHAwZ2NDD9eQGoT9zuj5bjrycyC3fzXnlZy9zgqHrOPOX1pKGbiyEtrKYz4vADrrrHlibp4j5BjkzZ4TjmyPCMtfco9LkdwPIcgmLgDGoFc7YE2ij6JC8iLysft5uXGsDZ3aU-__OrZPOaNmK9T5vDTO-i3LM7mKwjpKsQoPtJ8DCj4A66V-7bU1JH3n3QWHLC916rI1KdUDu4j4peJJTdRq1MWeyEdvGA9mtKshJEm4ruV5-Fd3Cu3LiQOkJ6e7TzNGyQGMqSbLN9oOChmoz_9UBnMnEu3z94fE7PtBlqmFiUdv_L-DgKCjHpm8ZKhqWctf1idEkC_gr-0i= "Component diagram for Internet Banking System - API Application")

## Supplementary Diagrams

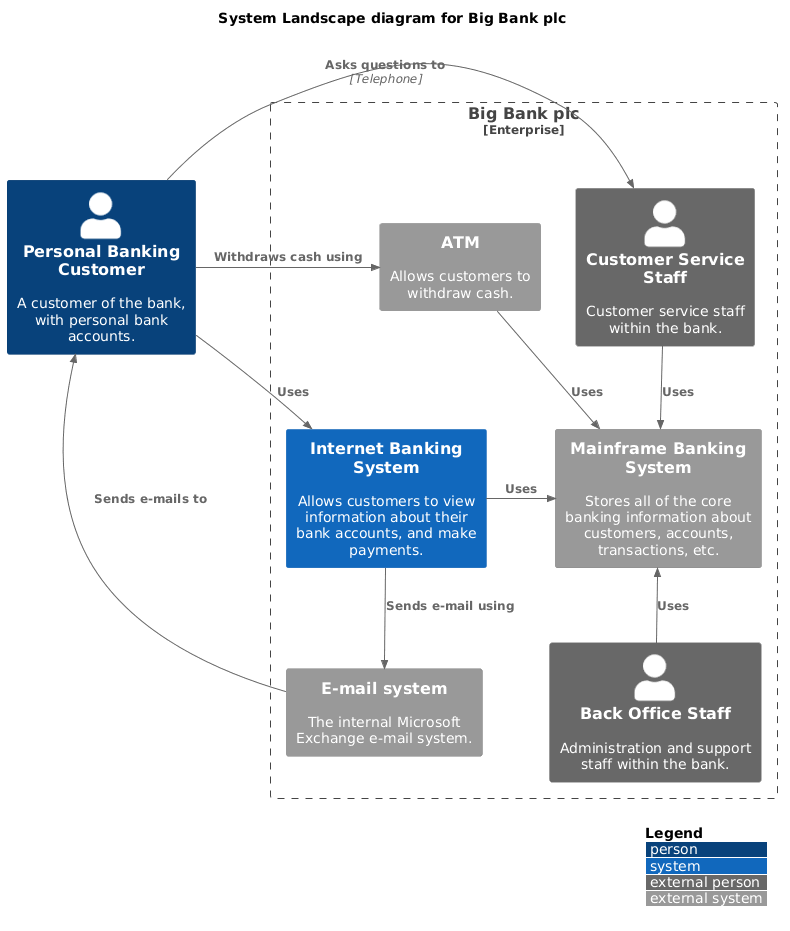

### System Landscape Diagram

Source: [C4_Context Diagram Sample - bigbankplc-landscape.puml](C4_Context%20Diagram%20Sample%20-%20bigbankplc-landscape.puml)

![System Landscape diagram for Big Bank plc](https://www.plantuml.com/plantuml/png/TLHDRzim3BtxLt2vD0NIf1Xs67PgFeorMD8KSO9Y9qEMvKI8B7cIt3GOzjz7-Ijsw-GKaO_a8_de1sE9jdagl2zSKf7730xMPkR7PAB9QRpdzf17kM6QAccPj6EgqaacY7GnTyR6WaUJ-RUx5sVQhPQJjw_Zx-DxD8Lp5_5knvdBVWEvnD0KKu0zC4YK4Eh4vHu4bmo8ZA7ZvjhWFmLO6eIYH8WpvcWuVapltIodlzUxRRXTluIBzUlpyBOnJOCm-ELlvuzegqolJzl7SEd_z9yNQFGiju91S3QMfR14BeQIZ47CoLwJ5BbgcF4zp8WyGYQevxqmRPGSqjnObJ8zWa5f8Q80kRRcbM-0pYdKI519qL-4g16SSBgGrP7E1eHIbKjhnWFavME7EjFSi726rfZeyv3UOy8scy4j_FK0VoN_OLGI24tnHF2JooAPRQYLm8AOMu9fs1atyJVEJi0bDfqIovK44gcys0hNNOwZOcqfEJB8oDdjhgHz8HFwxtP8h6CntQwkLNHZY55jG8avk0mV4gI4Yqix_frxWscQsE8yUT4Z3d75gLP69HRyTteWSi-0jGFw2A9R9hXeXibMzV-UQGLMQMO0jLYlaQ81ge7tpApfSjIQcTL46a8T35_CqePIgQ62KXqPukMzSUgOrOA2e3H1O4cI3DgU2Wp6UOgnSjd8hHvigqf4w35KIL8McE4BriNhadiQfrnoWwJBld3X9iyofUtrAlyyRyD4-Cpu_X0ftJgJJzhS6MOmmi4tBLmfcTTA5wOG1duACBG2EwujV5SX0SCBhjRk1ERc-x52pu2dvcZWJyvCiHeNvyJ51CiEIh8woUBJWLqltg6yAG-XBRPEzprf-u2B7crSWUww2-v1UKjonem5iMxzhgykULiOTzsBl3WVi7Vy6ly7 "System Landscape diagram for Big Bank plc")

### Dynamic Diagram

Source: [C4_Dynamic Diagram Sample - bigbankplc.puml](C4_Dynamic%20Diagram%20Sample%20-%20bigbankplc.puml)

![C4_Dynamic Diagram Sample - bigbankplc](https://www.plantuml.com/plantuml/png/fLNVRzem47xFNt7h9Wsa4jPgawP9aqgXMbj1eGHKxIcw90QiENPaEp0sxN_VEIGa_7Zej3xG-7JtVNVVtTatngAsUIgyDrp68ayOhApDp9TkL-F6NtAxogFSC1qhQPcqVgpIRYPGkfYEiOdWKRV_iJDnflbes5rV-v_z3sGA1rk9AO_zpA5xmzxtyNmMpiQJS31-UMgrAylBm-m-7DvzktiQaD6RC6sKRCMviIfb-XBw-w-B7bJcYxONR8rbQNYhSfcWthRYA_AedE51BfHEqN8bBzhmsmFwwrC9o2NJBSoofdClomIFTyvaVyGrcbZpp5v2JovpWTgPUqAeZTcdOC0gI57Yae5TCQuXqsh11QFS3jcgY91aNFEODQc3dQcYlOGWqrmkuLOfwuop5ODCSMb1BG3Zc1a3LDa-2-3DGe-8K_Acz49g846DTYUupOr3dc8KSJjwBbWqIfCfRGjiSgTm8c9hwhWvWTNCkLAMZOAcbQrPqJIFjkv_NpEqp81qcGfkM089MYp8zc2GvJfJXftoOPvms-3gkNEJf_-swp_TpTpdHAirJuXBwILARWfXEXioGG7ZY1OOSq6VfrI3g6vM4ZNxDA1y8pG5tLXZB1XSNSVk55YbcNbLGmY-rgx0hsLh4eosmVEmWOsLShz8kJMD7c4Nyo14tQozefZ0IiN_8AmZgMLr9yTzvvfV7yjK6jK1HYgtvP3G2g255Qxf_g3jOf8bHFV7ywPCX8F6EkzMRvubnKIikAdM1bmXIqTrFvjD0egcqDscdbcW2k2Sx3NIOp1-wZRWmkcPPJpiU5bdeIRVNGU3spw57rLInnzkMS1aqaWhB_BSYwGS89gjTAFpZik4_Vpwu7vRxSxLBiNv6Oholb9omNLQOPu56wAn5U1rcVJmy28ujxx_c_MvE-5er4-4FGNotfT6Y362Y06LQooWNb8E2bg2_oZkMb0Y0M8jGdtV9tSXJ9jqCY0KJJpDCGtMHdDBRnPiw16hs7pdNev2QGfOgTWdakoedSTNpwjrsgboLEBr2U3X1fOIbN3StHzUS3z-gP_76-Adv_Gl "C4_Dynamic Diagram Sample - bigbankplc")

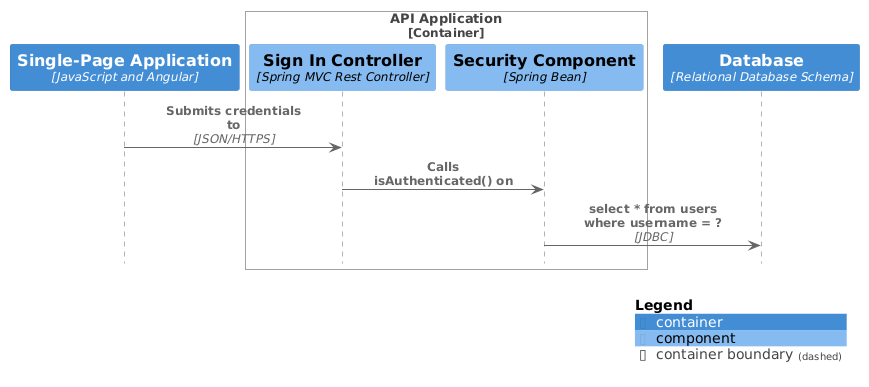

### Sequence Diagram

Source: [C4_Sequence Diagram Sample - bigbankplc.puml](C4_Sequence%20Diagram%20Sample%20-%20bigbankplc.puml)

![C4_Sequence Diagram Sample - bigbankplc](https://www.plantuml.com/plantuml/png/NLDBRzim3BxdLt0vfKDYRrqFmu1XpGjhXpw2kjkE0IqpjZ1PyYGwGVxzA3LPazvaYlnUegy3e-U-DODtsYhJLmGDSnU-vBd7NLPhRlgo3-ILiqoMC-NQl3DeuymaS6LqcS-l9gjO-db_bsyliy_P1ocj2_hRarMKTH5-C1S0r9RyI7qSmx3GjZOqMM5DCEqwenMoTdOeLpzmYuNokcD0My7Krhr17szMtcrrHG7G670Ru8RWLdHvImmbsZy22flUgWY5HlCUs87g0xkMV82jnZYZFUoeXDAxdJZBXXSdwjOprziA_NvK2k5qTNkcxc80C7TjvwnaCLANoKXjHGH41E-CeQIqw7pKSlzh3ayK-Ctjr1YXXfXhY0f3nD0s7iyipGwMYdrWQhEtz9yY4QdUHwF_woVqCq9xbjjvDazaaAawAeWJsev1DMZh-D5X23ldgp06OXNfZ-6ibxOQdSQsA4VgIfWMo5XYeCYQu1CP7CjGg8PQJ1BPUNh903pLEh1FtI9XutoRpcDeC3IY47l9nVBX6K1vgk8d6f66Ib48O5pzgdCWt6dFNfweBrlDuNHCFATLAnuVyfldvrKXGsb6-bEkSrcn03fCNvb9B4DQWjGfNSbo84EAuJril6iFRxfho5CwMsm9liAtnBQOpQEuukRnz_fk-Ntvi90GhybMyeVy0m== "C4_Sequence Diagram Sample - bigbankplc")

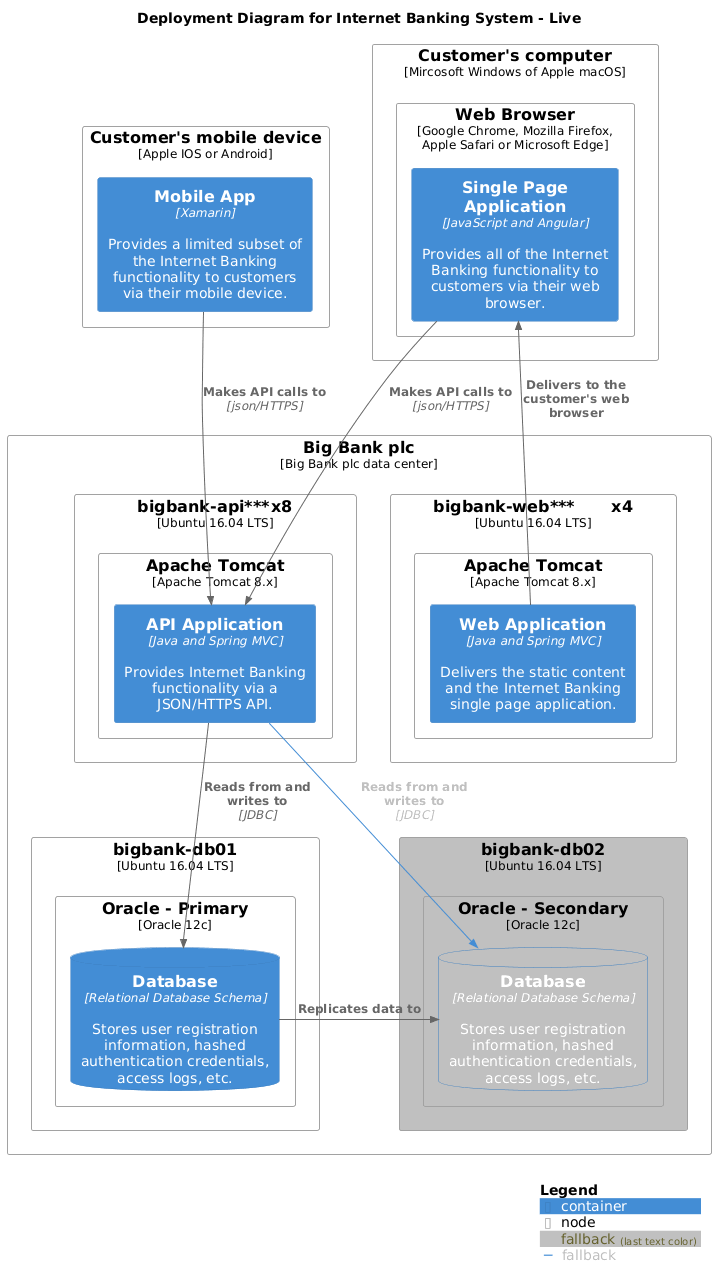

### Deployment Diagram

Source: [C4_Deployment Diagram Sample - bigbankplc.puml](C4_Deployment%20Diagram%20Sample%20-%20bigbankplc.puml)

![Deployment Diagram for Internet Banking System - Live](https://www.plantuml.com/plantuml/png/pLPjJoCt4FxEhvYcbGvGI22b5QfqqeM47Y128ZQKLgeKpThEniMxNjdU0AtkltTcDxdDsxNG-z94Mgrd_SpBCpCUV_01NIXIimVmZSw4AQI2MGYv_wdTTlZKIdIO5N7XbHCs2oeBBM7JTcumOzIH3zBekDqxFHgnw7vmqvvtMcUjOn9D-YetzYLbKCucta6H4Pe546OAfjOO-wIp18pE560cOUspTfxUB91rC5QWCI-auxEREopiTQMyC8e5Oqps6rF2n2WU6qtuBavwrbZtll6jEEP_uu1ttocpjJEevx2nbwJiur9w-lrPl_y3QI1_o2zH60nAWb69eY2qPvSbxAC8Ubv-qHaOf6XOoG61Rhg_3U_7auUhyUNavkBZnMr_dvG57Oo2EYZeQqmSfiIKWokYtsKgm3bcZqnQzEA3Ik48RlHSxUtLiCcjbMe_Dw89ZNETb02WPMDZ3H83Wb2ik77m5vK0mAOMcH4erabCc2FCzU7XuU_X-OnLtSS55G6S_DWwFeMRSRHKiKiDvYXcYa3TyWN6DXKO6fi2E6izhwhXNu_g3easHqeq0qPNqCrpesc_jXdhkCOvbkKJvOwP6VpIO_78sRcMoczJDwL2P30Q7LvWhWaDrz7mjdqv7eyY81CjIkxIWqzxzNCpi0KrCZu-MI6Abs-bo3eKXYaQbY-Krv7JARgNHYqxwOWlqjEFzsLCM_kKr1YzOXXLDrPnmb8C4T6T8d-DWdMgh5K7JYNQ1rVkfcgbWalBzoRCqC-eWh6Wdip2WdKGJabUel5DG26KzzIZ2IrK46ydhxDENcSdUToQcFZtTRCUmB_nsLabD59qYCbjIlzPyJRBdVyBpJiSVntnyIhXJogkslhqlxLrvolxckmJu475h-phlZ9quZbVJWaQOCGMBAPJkPl5MotlwK7fpZ6XILERsLMgdxOFqzIoYxt21vigzyu32JIfasgkXQhYpMbzDOo0pkfk9ftLSXbo7Me5e-s32aye1l-ArEWwMpkqa8P5gdbu-2Bs58cTxevi_J2ZUIaMRlhoP2ECTkl-Sj0xWgJXcwz7oPA2fmDxhEaAuEqqm8FEf7tox50LTOfY67rfWiIEzYgtoF1vjMA57wtbZFHcZgmrOM3_rCOW_AoTcjhdva9tX5EYXaaTQE4g1ovaebRBgURNvyWTL-LwnBdUKLAHS3glIgMR9JIxtJhnndmTrrJFi8XwMLvbKT4nyRa0gbasm4Soo1EDRpTKq9Oz-SFRh9f4X6PG6TLR49FxggagEkf-iMLKeaxmYgiBMwMPSf3SAPGUffITagedHyMuD7ZTF--j0pglGUmwhzZTkt9qBPLK2IDaUJyXE5sDeilXGtrJ-a3NBBhl_Gq= "Deployment Diagram for Internet Banking System - Live")

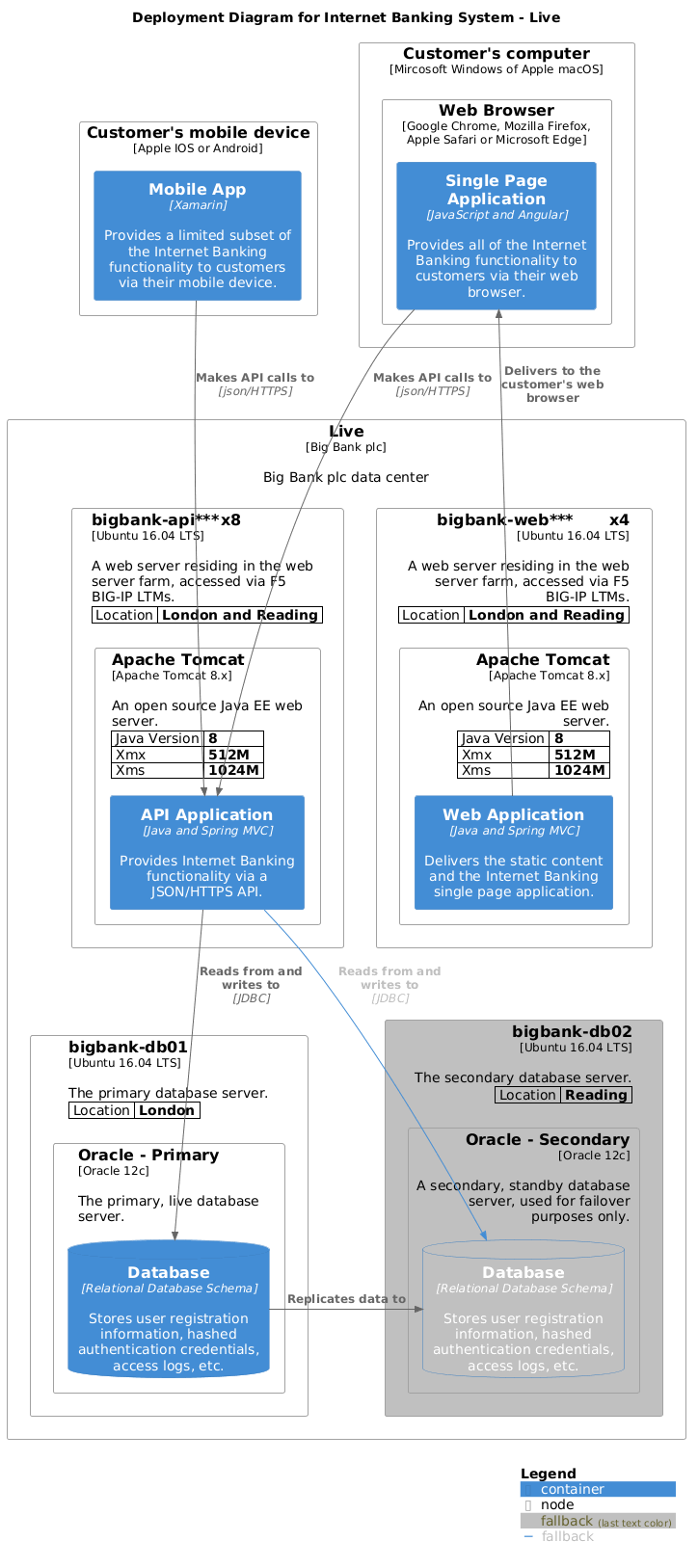

**with details**

Source: [C4_Deployment Diagram Sample - bigbankplc-details.puml](C4_Deployment%20Diagram%20Sample%20-%20bigbankplc-details.puml)

![Deployment Diagram for Internet Banking System - Live with details](https://www.plantuml.com/plantuml/png/vLTjR-964FxEhvZIIaSY0WbDggZIIKU09aGG42QNgrG9hUt5RBFsMhjh4bhTV-_CsfnvIoxNIbMb9XAoP-TzdfaTVp2MQPl5iWBmdKW2cOKS5jQcvkTcKxEdHYJi8lCpmtMW4iiJsmXKt4mbIqZgnDXG2h_PEJyP4-b-E6WkMutBnYcIPbsUIhMAIIWb4-yWIr2Q260N7EPAIlKaaWYaI3Ym98IjOw4DFYb0wo1LmAHSeOulRXwmK6c7OKzo8anPLAlEKSPdmMEr3Z_uKKT9fTzNlmzEwRzwHDmJBlSuBN-sExn89H_NrFCVBxlT2zHGUS3ygCoEjKgvjgiRpaAkQtZm3j3X89FCyX0aZpX69mp54aAD1LOitOb8G38CaxGVeT2W_UleVZfxw4zlPeFUTU-kIygii9936Irq1OiqYp656lfO5vrm2rSiUQHiUYjZUGmdC11BNgcKOhCx5V9QAeCwLEaCmwfUYSW90f9tto5aba70oK3rw4_4203cR1rihJh0gbYX4X8Sg2HKYQlY1BE0Zc1-I6B7_cnG2nFazqNaevqJbehZu-FVxFCbQRdtCqGMdFtKE3s7mTGZMXkUk0y8mINNeBaHf9moHoZPE9ep7TU11G4tbEMbOF3B1Lprhq_wOzGrD8rr47k1tB8bWuzScoAOoyBtFSPFyJETNvorXY-p668vEssTR_Bifu6bB5Xm2j0zm5J5cCxgBW4k6yvcEm4qaO1HcGuuE9TxlOq4R8L7VnriMOR0qcXAa8Pn7zffAaLPDQU5QkQbch8w_DWXCaQp524t--2QOm-JC9F2hboE6TnwexlcpNGwzW1DD3Q2_bmfVx-2d1VHKW0bz4_FDc13hoy1Pegvmt1YfbSEmZx32N8WH_ksb6Q1f9ACt0Fsq3ZNKorfPwrWnqWTstV9NpMrLOwkNmjzLD4j14WT3YAMvnNMPF0G136ZKyyg13vD3-g0I1Yh7JTs0Ow0s3tNOS7C0e7FCcoCn1PLXa3pa5wPDElkm74QuGktmJSNw_NUdcnKgxLThTPhrJ8ShvVmOBre8BF8l2z7z16yNC99KSBMPWszjVRzAhPBqtN0op09_JqVwldKfbaxPq8gcZLffbDbi2GgaQklERbV_DP_fVe77FyxpVk6iO_Gy3SXWNChd_ld_w-vFodcVkjV6Vp8X1eUaFLjWx_BQPHfutAC_O0uWcBpSzn4thiJ3FvWIwKimYskD7DejdpUtqTYHIvsCcDLpFKx0qWGg2xaIn7mF2ifllT77c0BjfDGAn6kGov3pSMGVPZBenG9Vs8ueaMoTQin7DYneFtBPBx1IDJyS6JRjntkea7Xfd4mGncXj_sbe0y4YOjjkXqbKJ9QhCXZWUkrKNCB3mBRwScGGtdKCGj6tZhONQs-HbuQKAx2L_aRARnMYYhIMMYqLeUX-aD8YMqXD9-hvtgXssFOEeAIEXI1pXteXH7VX5EPNvCocaLvhSTKwmEGyW8jqXmgxIJ2zLTl9rxAVvPh0dqHzHfU3bGuGBy085zsXkmH3TBAGryE26X5dlnkL9AlAYXDGYwgRv6OtUTDbQUZx1VbeWhA0c-uMjXoPjpDJwFIm1ohurBrf16CQuEttQlEja3hBHA79ZcvEt6xnbf9NZ2KTAizYkFNXNSpUYW_DZxWbmfzI_q5 "Deployment Diagram for Internet Banking System - Live with details")

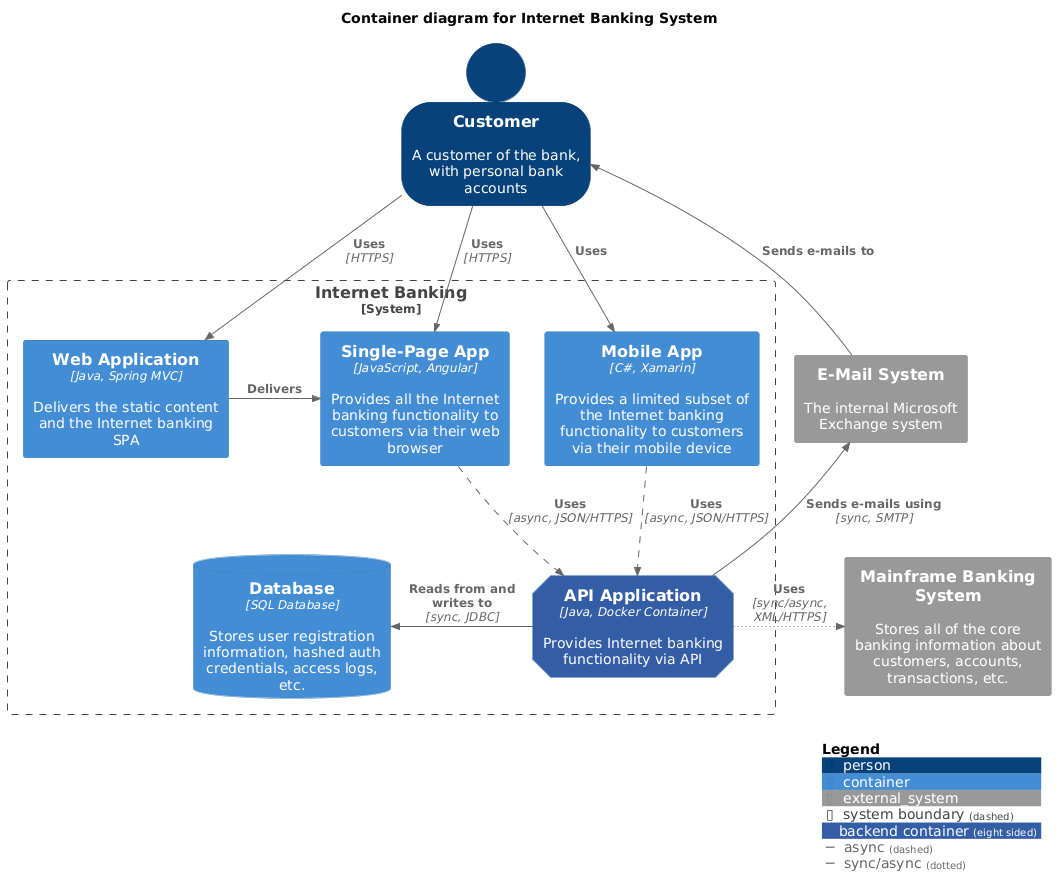

## Styles

Source: [C4_Container Diagram Sample - bigbankplc-styles.puml](C4_Container%20Diagram%20Sample%20-%20bigbankplc-styles.puml)

![Container diagram for Internet Banking System](https://www.plantuml.com/plantuml/png/hLPTh-8s47tFhvYo-m1IWBRRbLQLa9OBQVUk-CWIRhSFbP3Zc62jOqUs0nTL_UyTvvDmjwtKbWSKJppdd8pFJFBUMA9jaGdl6owfA1869sjpy-Dqgibbad9xAkB2C4sLj4pQ2LNPD1T4kfoniOdWyNJnmpXqeQVrQdh-Vl9kyYs63WlC85moFSaTlXTzs7u-XC4kscuEswVzwd4J34VUF4a2mJA4tfDqE8W9_S9aqkOEV7XznCL22QLdhuDLi0us-yDFM_nRR5VR7TwFq-hkuDMRDs-NyxSknvn8pcO1JqysuWbB8hSUZl2EO2aIxDcpdJLiG1kwtoHpAM1Spg1KjsEYL4RCLL87RJ6rbZFVxV2P6Xq24VxoHcIlWisMn9nOiiBrSDH3T-3J_uT2MTjHU9PRmQ2j9oISf9faS5GQ7l58jMGM7eZymcKAqTLObdbUoBHHSaWBOrN6j0-BzcemXoOCwWZsn236R1ykQ1N8oqGYoXWGIbKXhS52UXNquG432T7N8VqEiUu534RmkmVuQ_KEBom-a3p7pPzP3FCy5vmIovN4EWq-aZFn8Sgr4x_-PU5YIoRu6MMKqj3TbbEepGi4pzg5MzwuUV1mZYBxp2P7x464jmKRXoHbZhrXZQZckVLXBjD246VJGQZL6MrZW0ZnTPPZ8QcJJWItLx2ghQI1CoSkXsl01uPOgmlst0j9cOgvO7KzrkMY4RLuvSEl92DOYhuO43pZw0WmHMnGJ7re_qvS9G0ITkQKtSjRniE4M18Jmzmvr9TEJVHf1RsrLHgrkRa2cgNSM5sUAN29lipAQnzEPRC0AT1OLBC4Jv0JONpdAsOC29NYWbawUL6ekh6nKjnPDdpykdEM2hTfk9qsNUN-eKAkA0XSjYj9pUpbw1fvVxI-3vxja6M4YuCf0qWKZDUuhdlECU_nM7X9YWsqvbGheuuMWcTw8XBjLsKYx0rchQr3HKnvn0PdTqrzKtRdpze550FjyzqK7qYi2jjPm6zxsGSyAsb8MOck_1uEifjvqNNjas76SN_OxyC8D_RtLJtsztjwfY-tLdI7ZPlLiRgP4HLSCm5gf3BODqH3M0vS7pxYAsbQaRUdMStY2k5MmNy1EZnWSYUxQvO-w8wHnC1HgwmSM1UDxOlZJ3cYccVvi6Ygu31lgdLdiWXX3R2nYvOOdP0xF_OrzFCAuuPpIn-jzs4Dr3vCB_s5AviwTQyvd5RujN1NgvktuAZ-O5W5FmUR9Nuel4Tqzntn9m== "Container diagram for Internet Banking System")

## Icons

Source: [C4_Container Diagram Sample - bigbankplc-icons.puml](C4_Container%20Diagram%20Sample%20-%20bigbankplc-icons.puml)

![Container diagram for Internet Banking System](https://www.plantuml.com/plantuml/png/hLRRakCq47tFLpJXWMoL4tEjedZQJ1AOMIONrfwTvSdLjfL4h2mPIKusHV7lj1HVuimC2nJpPBNwSdJwT6TU6ulQLeKOVCPb9ggSmTxQqlmGXXgFanst-ogj3DEPafP9EybK4PO2fOiP6viBdeQpRySRPtfOteU7hoVVJxuaKpAZ2EIIwKdfy-TiIoUOBzxTpTQhw1_KiLM9kVwcgyVfThmbZx4fDRVCX0KQotIOiuExCssL7zUhUFguYDRBnVzQoDlmo8mgsFYxmHTGIKfGK2AmUmPR9OGwSha3uL2WpA5tpRMXBmK408JAK8WJvMYfVuQrvggXBKIvgmI-U9qhAvbzwVOtFE1BTuNvNIH4pE59xGiomqywC7bWGfNix4Alkv_-kdw8atYzIURhnzNeLMURHadqyoAUtPAnDZtUnRV9_UAdnMfEne7bLX0l3IcGSznfB8Xe3NVKG4sFXHkK7npdqObwL0m66wQDagEiCfRQf0EOjL_3AJHcK5lVb9IY0pYICA3qWIYy3J3BL2Mj6HAES-haXWmvwjCe-ufoNGCOle8_1a1_BTxHaQK9bYKvFx8KfcKfU8QMApaaqnlgHW0HAOp0Bz_Dd6tE12U2ZOT6msbv1hLKlPoSkQsRDW_VJ5siwow1xICm9TKOHkGcs7Y3E-PGDDMZJFFI1Z0zYygPDreTUCuCa3YVhxObpRideE3svDJSC6hWmD75S0tqS4YrEf9UNDPQjK_G5IhbWjKKBVsXmJVxF83tM22nqyT5irNGJEPWgjGGhhgF_mtd6G3u1S9SdVC0NGETfwCSBQPec6jI_Udyer_keNUsIXDAjs90inqtLlk60vSasi9_1x17iwSNO4MgopJBgRqSXGcSw9Wnj1nsT60scxYSnQcRpISKffXzO38d3hdJz-RkUPdD5RdfBgx7wIUuStHHOXVIWlYp7Oh5HpjY1N92w0tajHWlwLmFf0kBgK7S5w7fMl9CAwEs5XOVipr9WvJUUZRxWqfSvAznTHKelzpI9c1Nqt_H0YVWMXiP6TgtNJG2C5MLxOGHj4CV0FLD6lGiDAsWHV2MYOl5qettWs76rRwDuqr4Zds_yn3-lKzl5BphkLooOdotJzN5CZcdQrP5dSaR-s9e2g8voIo0Dz5w5LuMlopvhoAJ6_BkW7MZqS_obc5kOAjLuNVNqV-KqYHw8PqJpszcpJjTpWi-hYGLKLe3REoiFaS7v4fzVGpzkCguFTsMZvRnfaxKFgON_aHt3J4kFgpPUK__zpJalAPG-k7x2m== "Container diagram for Internet Banking System")
