# Themes
|
|
|
|
|
|
|
|
- [📄 C4-PlantUML](README.md#c4-plantuml)
|
|
- [📄 Layout Options](LayoutOptions.md#layout-options)
|
|
- [📄 Themes](#themes)
|
|
- [Use theme](#use-theme)
|
|
- [List of available C4-themes](#list-of-available-c4-themes)
|
|
- [C4_blue](#c4_blue)
|
|
- [C4_brown](#c4_brown)
|
|
- [C4_green](#c4_green)
|
|
- [C4_sandstone](#c4_sandstone)
|
|
- [C4_superhero](#c4_superhero)
|
|
- [C4_united](#c4_united)
|
|
- [C4_violet](#c4_violet)
|
|
- [Matt Weagle themes](#matt-weagle-themes)
|
|
- [Write custom themes](#write-custom-themes)
|
|
- [Following variables could be set in a theme, additional to the skinparams and styles](#following-variables-could-be-set-in-a-theme-additional-to-the-skinparams-and-styles)
|
|
- [(C4 styled) Sequence diagram and themes](#c4-styled-sequence-diagram-and-themes)
|
|
- samples
|
|
- [📄 C4 Model Diagrams](samples/C4CoreDiagrams.md#c4-model-diagrams)
|
|
|
|
## Use theme
|
|
|
|
Similar to PlantUML themes supports C4-PlantUML `C4_...` specific themes too (sometimes based on existing PlantUML themes).
|
|
|
|
Additional to the standard themes with skinparam and style definitions requires C4-PlantUML corresponding variable definitions.
|
|
Therefore we started with the convention that all C4-PlantUML compatible themes start with `C4_...` in the name
|
|
(e.g. theme [`C4_united`](https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/v2.9.0/themes/puml-theme-C4_united.puml)
|
|
bases on the [`united`](https://raw.githubusercontent.com/plantuml/plantuml/master/themes/puml-theme-united.puml) theme
|
|
and contains all additional required C4-PlantUML settings that it can be directly used in all C4-PlantUML diagrams).
|
|
|
|
E.g. in order to invoke theme `C4_united` from a remote repository, you have to use the following directive:
|
|
|
|
```plantuml
|
|
!theme C4_united from https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/v2.9.0/themes
|
|
```
|
|
|
|
In order to invoke a local theme `C4_foo`, you have to use the following directive:
|
|
|
|
```plantuml
|
|
!theme C4_foo from /path/to/themes/folder
|
|
```
|
|
|
|
Starting with PlantUML v1.2023.8 the C4 themes can be invoked via C4-Stdlib or calculated paths too:
|
|
|
|
```plantuml
|
|
' theme from C4-Stdlib
|
|
!theme C4_united from <C4/themes>
|
|
|
|
' another alternative: theme with calculated from
|
|
!RELATIVE_INCLUDE = "https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master"
|
|
!theme C4_united from %get_variable_value("RELATIVE_INCLUDE")/themes
|
|
```
|
|
|
|

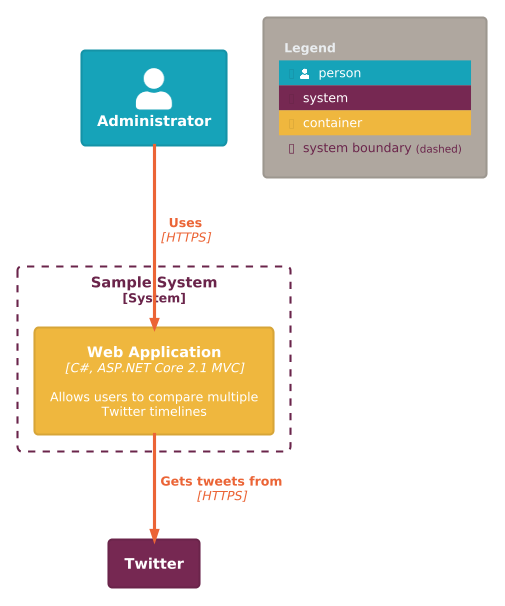

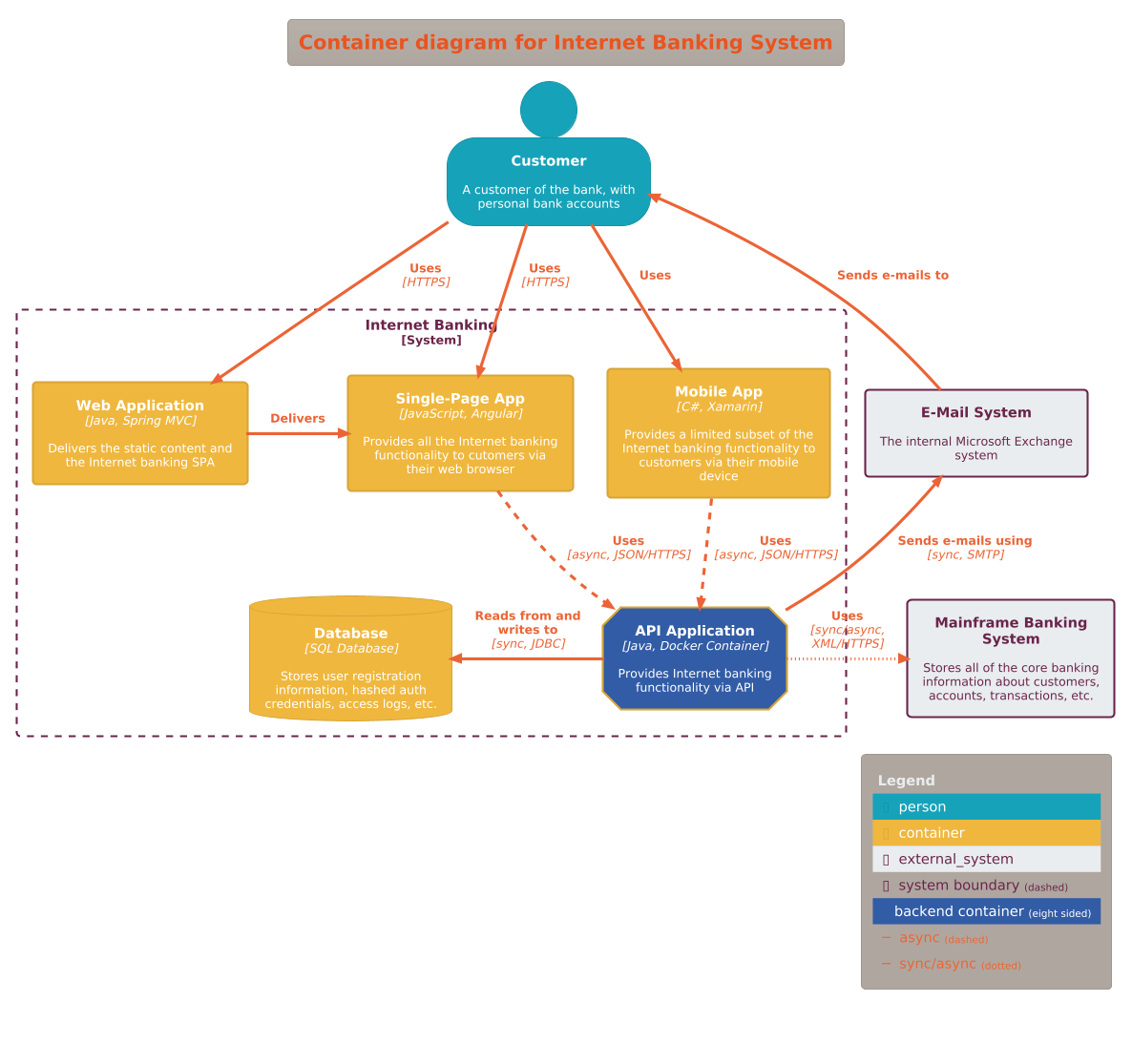

Following simple sample uses the C4_united theme from the official remote repository path.
|
|
|
|
```plantuml
|
|
@startuml
|
|
|
|
!theme C4_united from https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/v2.9.0/themes
|
|
|
|
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/v2.9.0/C4_Container.puml
|
|
|
|
Person(admin, "Administrator")
|
|
System_Boundary(c1, "Sample System") {
|
|
Container(web_app, "Web Application", "C#, ASP.NET Core 2.1 MVC", "Allows users to compare multiple Twitter timelines")
|
|
}
|
|
System(twitter, "Twitter")
|
|
|
|
Rel(admin, web_app, "Uses", "HTTPS")
|
|
Rel(web_app, twitter, "Gets tweets from", "HTTPS")
|
|
|
|
SHOW_FLOATING_LEGEND()
|
|
@enduml
|
|
```
|
|
|
|
|
|
|
|
## List of available C4-themes
|
|
|
|
### C4_blue
|
|
|
|
C4_blue theme is the original theme and need no activation.
|
|
|
|
Theme [C4_blue](https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/v2.9.0/themes/puml-theme-C4_blue.puml) can be activated with
|
|
|
|
```plantuml
|
|
!theme C4_blue from https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/v2.9.0/themes
|
|
```
|
|
|
|
|
|
|
|
### C4_brown
|
|
|
|
Theme [C4_brown](https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/v2.9.0/themes/puml-theme-C4_brown.puml) can be activated with
|
|
|
|
```plantuml
|
|
!theme C4_brown from https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/v2.9.0/themes
|
|
```
|
|
|
|
|
|
|
|
|
|
### C4_green
|
|
|
|
Theme [C4_green](https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/v2.9.0/themes/puml-theme-C4_green.puml) can be activated with
|
|
|
|
```plantuml
|
|
!theme C4_green from https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/v2.9.0/themes
|
|
```
|
|
|
|
|
|
|
|
### C4_sandstone
|
|
|
|
Theme [C4_sandstone](https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/v2.9.0/themes/puml-theme-C4_sandstone.puml) can be activated with
|
|
|
|
```plantuml
|
|
!theme C4_sandstone from https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/v2.9.0/themes
|
|
```
|
|
|
|
|
|
|
|
### C4_superhero
|
|
|
|
Theme [C4_superhero](https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/v2.9.0/themes/puml-theme-C4_superhero.puml) can be activated with
|
|
|
|
```plantuml
|
|
!theme C4_superhero from https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/v2.9.0/themes
|
|
```
|
|
|
|
|
|
|
|
### C4_united
|
|
|
|
Theme [C4_united](https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/v2.9.0/themes/puml-theme-C4_united.puml) can be activated with
|
|
|
|
```plantuml
|
|
!theme C4_united from https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/v2.9.0/themes
|
|
```
|
|
|
|
|
|
|
|
### C4_violet
|
|
|
|
Theme [C4_violet](https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/v2.9.0/themes/puml-theme-C4_violet.puml) can be activated with
|
|
|
|
```plantuml
|
|
!theme C4_violet from https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/v2.9.0/themes
|
|
```
|
|
|
|
|
|
|
|
## Matt Weagle themes
|
|
|
|
Matt Weagle published a set of impressive themes based on ColorBrewer and Seaborn palettes (thank you Matt).
|
|
|
|
https://github.com/mweagle/C4-PlantUML-Themes contains an overview of all his themes.
|
|
|
|

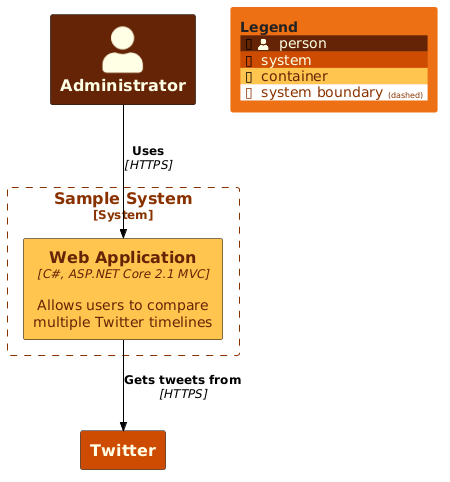

They can be simply invoked like the `cb_seq_YlOrBr_9` theme
|
|
|
|
```plantuml
|
|
@startuml
|
|
!theme cb_seq_YlOrBr_9 from https://raw.githubusercontent.com/mweagle/C4-PlantUML-Themes/main/palettes
|
|
|
|
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/v2.9.0/C4_Container.puml
|
|
|
|
Person(admin, "Administrator")
|
|
System_Boundary(c1, "Sample System") {
|
|
Container(web_app, "Web Application", "C#, ASP.NET Core 2.1 MVC", "Allows users to compare multiple Twitter timelines")
|
|
}
|
|
System(twitter, "Twitter")
|
|
|
|
Rel(admin, web_app, "Uses", "HTTPS")
|
|
Rel(web_app, twitter, "Gets tweets from", "HTTPS")
|
|
|
|
SHOW_FLOATING_LEGEND()
|
|
@enduml
|
|
```
|
|
|
|
|
|
|
|
## Write custom themes
|
|
|
|
You can create your own theme on your local file system. You can duplicate any existing theme to create your own one.
|
|
|
|
By default, a theme file is named `puml-theme-C4_foo.puml` where `C4_foo` is the name of the theme.
|
|
|
|
In contrast to the normal themes (with skinparams and/or styles) the corresponding color,... variables have to overwritten too (e.g. that the legend is updated... details see below).
|
|
|
|
If you have any interesting theme, you can also propose a pull request so that we integrate this theme into the C4-PlantUML standard library.
|
|
|
|
### Following variables could be set in a theme, additional to the skinparams and styles
|
|
|
|
- stereotype and technology font size
|
|
|
|
```plantuml
|
|
!$STEREOTYPE_FONT_SIZE ?= 12
|
|
!$TECHN_FONT_SIZE ?= 12
|
|
```
|
|
|
|
- default text color of all elements
|
|
|
|
```plantuml
|
|
!$ELEMENT_FONT_COLOR ?= "#FFFFFF"
|
|
```
|
|
|
|
- arrow related colors and text size
|
|
|
|
```plantuml
|
|
!$ARROW_COLOR ?= "#666666"
|
|
!$ARROW_FONT_COLOR ?= $ARROW_COLOR
|
|
!$ARROW_FONT_SIZE ?= 12
|
|
```
|
|
|
|
- (default) boundary related colors and style
|
|
|
|
```plantuml
|
|
!$BOUNDARY_COLOR ?= "#444444"
|
|
!$BOUNDARY_BG_COLOR ?= "transparent"
|
|
!$BOUNDARY_BORDER_STYLE ?= "dashed"
|
|
```
|
|
|
|
- person related colors
|
|
|
|
```plantuml
|
|
!$PERSON_FONT_COLOR ?= $ELEMENT_FONT_COLOR
|
|
!$PERSON_BG_COLOR ?= "#08427B"
|
|
!$PERSON_BORDER_COLOR ?= "#073B6F"
|
|
```
|
|
|
|
- external person related colors
|
|
|
|
```plantuml
|
|
!$EXTERNAL_PERSON_FONT_COLOR ?= $ELEMENT_FONT_COLOR
|
|
!$EXTERNAL_PERSON_BG_COLOR ?= "#686868"
|
|
!$EXTERNAL_PERSON_BORDER_COLOR ?= "#8A8A8A"
|
|
```
|
|
|
|
- system related colors
|
|
|
|
```plantuml
|
|
!$SYSTEM_FONT_COLOR ?= $ELEMENT_FONT_COLOR
|
|
!$SYSTEM_BG_COLOR ?= "#1168BD"
|
|
!$SYSTEM_BORDER_COLOR ?= "#3C7FC0"
|
|
```
|
|
|
|
- external system related colors
|
|
|
|
```plantuml
|
|
!$EXTERNAL_SYSTEM_FONT_COLOR ?= $ELEMENT_FONT_COLOR
|
|
!$EXTERNAL_SYSTEM_BG_COLOR ?= "#999999"
|
|
!$EXTERNAL_SYSTEM_BORDER_COLOR ?= "#8A8A8A"
|
|
```
|
|
|
|
- system boundary related colors and style
|
|
|
|
```plantuml
|
|
!$SYSTEM_BOUNDARY_COLOR ?= $BOUNDARY_COLOR
|
|
!$SYSTEM_BOUNDARY_BG_COLOR ?= $BOUNDARY_BG_COLOR
|
|
!$SYSTEM_BOUNDARY_BORDER_STYLE ?= $BOUNDARY_BORDER_STYLE
|
|
```
|
|
|
|
- enterprise boundary related colors and style
|
|
|
|
```plantuml
|
|
!$ENTERPRISE_BOUNDARY_COLOR ?= $BOUNDARY_COLOR
|
|
!$ENTERPRISE_BOUNDARY_BG_COLOR ?= $BOUNDARY_BG_COLOR
|
|
!$ENTERPRISE_BOUNDARY_BORDER_STYLE ?= $BOUNDARY_BORDER_STYLE
|
|
```
|
|
|
|
- container related colors
|
|
|
|
```plantuml
|
|
!$CONTAINER_FONT_COLOR ?= $ELEMENT_FONT_COLOR
|
|
!$CONTAINER_BG_COLOR ?= "#438DD5"
|
|
!$CONTAINER_BORDER_COLOR ?= "#3C7FC0"
|
|
```
|
|
|
|
- external container related colors
|
|
|
|
```plantuml
|
|
!$EXTERNAL_CONTAINER_FONT_COLOR ?= $ELEMENT_FONT_COLOR
|
|
!$EXTERNAL_CONTAINER_BG_COLOR ?= "#B3B3B3"
|
|
!$EXTERNAL_CONTAINER_BORDER_COLOR ?= "#A6A6A6"
|
|
```
|
|
|
|
- container boundary related colors and style
|
|
|
|
```plantuml
|
|
!$CONTAINER_BOUNDARY_COLOR ?= $BOUNDARY_COLOR
|
|
!$CONTAINER_BOUNDARY_BG_COLOR ?= $BOUNDARY_BG_COLOR
|
|
!$CONTAINER_BOUNDARY_BORDER_STYLE ?= $BOUNDARY_BORDER_STYLE
|
|
```
|
|
|
|
- component related colors
|
|
|
|
```plantuml
|
|
!$COMPONENT_FONT_COLOR ?= "#000000"
|
|
!$COMPONENT_BG_COLOR ?= "#85BBF0"
|
|
!$COMPONENT_BORDER_COLOR ?= "#78A8D8"
|
|
```
|
|
|
|
- external component related colors
|
|
|
|
```plantuml
|
|
!$EXTERNAL_COMPONENT_FONT_COLOR ?= $COMPONENT_FONT_COLOR
|
|
!$EXTERNAL_COMPONENT_BG_COLOR ?= "#CCCCCC"
|
|
!$EXTERNAL_COMPONENT_BORDER_COLOR ?= "#BFBFBF"
|
|
```
|
|
|
|
- node related colors
|
|
|
|
```plantuml
|
|
!$NODE_FONT_COLOR ?= "#000000"
|
|
!$NODE_BG_COLOR ?= "#FFFFFF"
|
|
!$NODE_BORDER_COLOR ?= "#A2A2A2"
|
|
```
|
|
|
|
- legend colors and sizes
|
|
|
|
```plantuml
|
|
!$LEGEND_TITLE_COLOR ?= "#000000"
|
|
!$LEGEND_FONT_COLOR ?= "#FFFFFF"
|
|
!$LEGEND_BG_COLOR ?= "transparent"
|
|
!$LEGEND_BORDER_COLOR ?= "transparent"
|
|
!$LEGEND_DARK_COLOR ?= "#66622E"
|
|
!$LEGEND_LIGHT_COLOR ?= "#khaki"
|
|
|
|
!$LEGEND_DETAILS_SMALL_SIZE ?= 10
|
|
!$LEGEND_DETAILS_NORMAL_SIZE ?= 14
|
|
```
|
|
|
|
- legend related texts
|
|
|
|
```plantuml
|
|
!$LEGEND_SHADOW_TEXT ?= "shadow"
|
|
!$LEGEND_NO_SHADOW_TEXT ?= "no shadow"
|
|
!$LEGEND_NO_FONT_BG_TEXT ?= "last text and back color"
|
|
!$LEGEND_NO_FONT_TEXT ?= "last text color"
|
|
!$LEGEND_NO_BG_TEXT ?= "last back color"
|
|
!$LEGEND_NO_LINE_TEXT ?= "last line color"
|
|
!$LEGEND_ROUNDED_BOX ?= "rounded box"
|
|
!$LEGEND_EIGHT_SIDED ?= "eight sided"
|
|
!$LEGEND_DOTTED_LINE ?= "dotted"
|
|
!$LEGEND_DASHED_LINE ?= "dashed"
|
|
!$LEGEND_BOLD_LINE ?= "bold"
|
|
!$LEGEND_BOUNDARY ?= "boundary"
|
|
!$LEGEND_DASHED_BOUNDARY ?= "dashed"
|
|
' transparent is ignored, produces smaller legends
|
|
' !$LEGEND_DASHED_TRANSPARENT_BOUNDARY ?= "dashed, transparent"
|
|
!$LEGEND_DASHED_TRANSPARENT_BOUNDARY ?= "dashed"
|
|
```
|
|
|
|
- sketch related colors, font and texts
|
|
|
|
```plantuml
|
|
!$SKETCH_BG_COLOR ?= "#EEEBDC"
|
|
!$SKETCH_FONT_COLOR ?= ""
|
|
!$SKETCH_WARNING_COLOR ?= "red"
|
|
|
|
!$SKETCH_FONT_NAME ?= "Comic Sans MS"
|
|
|
|
!$SKETCH_FOOTER_WARNING ?= "Warning:"
|
|
!$SKETCH_FOOTER_TEXT ?= "Created for discussion, needs to be validated"
|
|
```
|
|
|
|
- size of rectangle shape corner markers
|
|
|
|
```plantuml
|
|
!$ROUNDED_BOX_SIZE ?= 25
|
|
!$EIGHT_SIDED_SIZE ?= 18
|
|
```
|
|
|
|
### (C4 styled) Sequence diagram and themes
|
|
|
|
All sequence diagram specific renderings (like sequence-lifeline-color...) can be directly defined via skinparams and styles.
|
|
The advantage is that no separate variable definitions are required anymore.
|
|
(But the disadvantage is that all themes have to define there own skinparams and styles.)
|
|
|
|
A theme could contain e.g. following definitions, skinparams and styles
|
|
|
|
```plantuml
|
|
' $BOUNDARY_BG_COLOR... have to be defined in theme itself that it can be used in styles,...
|
|
' (no default values which are defined in C4.puml)
|
|
' If skinparams and styles are defined with concrete values no variables are required
|
|
!$BOUNDARY_BG_COLOR ?= "transparent"
|
|
!$BOUNDARY_COLOR ?= "#444444"
|
|
!$ARROW_COLOR ?= "#666666"
|
|
|
|
' replace transparent with concrete background that it can be used as font color too
|
|
!if ($BOUNDARY_BG_COLOR == "transparent")
|
|
!$SEQUENCE_BG_COLOR = white
|
|
!else
|
|
!$SEQUENCE_BG_COLOR = $BOUNDARY_BG_COLOR
|
|
!endif
|
|
|
|
' "C4 styled" default is no foot boxes
|
|
hide footbox
|
|
' "C4 styled" default is that lifeline is arrow color
|
|
skinparam SequenceLifelineBorderColor $ARROW_COLOR
|
|
|
|
skinparam SequenceGroupBodyBackgroundColor $SEQUENCE_BG_COLOR
|
|
skinparam SequenceGroupFontColor $BOUNDARY_COLOR
|
|
skinparam SequenceGroupBackgroundColor $BOUNDARY_COLOR
|
|
skinparam SequenceGroupHeaderFontColor $SEQUENCE_BG_COLOR
|
|
skinparam SequenceGroupBorderColor $BOUNDARY_COLOR
|
|
|
|
skinparam SequenceReferenceBackgroundColor $SEQUENCE_BG_COLOR
|
|
skinparam SequenceReferenceFontColor $BOUNDARY_COLOR
|
|
skinparam SequenceReferenceHeaderBackgroundColor $BOUNDARY_COLOR
|
|
' VIA STYLE
|
|
' skinparam SequenceReferenceHeaderFontColor $SEQUENCE_BG_COLOR
|
|
<style>
|
|
referenceHeader {
|
|
fontcolor $SEQUENCE_BG_COLOR
|
|
}
|
|
</style>
|
|
skinparam SequenceReferenceBorderColor $BOUNDARY_COLOR
|
|
|
|
skinparam SequenceDividerBackgroundColor $SEQUENCE_BG_COLOR
|
|
skinparam SequenceDividerFontColor $BOUNDARY_COLOR
|
|
skinparam SequenceDividerBorderColor $BOUNDARY_COLOR
|
|
|
|
' VIA STYLE
|
|
' skinparam SequenceDelayFontColor green
|
|
<style>
|
|
sequenceDiagram {
|
|
delay {
|
|
FontColor $BOUNDARY_COLOR
|
|
}
|
|
}
|
|
</style>
|
|
```
|
|
|
|
Following sample could be used as starting point for custom themes with sequence diagram support:
|
|
|
|
[](https://www.plantuml.com/plantuml/uml/hLPfRziu4FskNp7sfeW3D79saIwmHToj3-K0t3Yhs5tqaq5B8vieJQeavJIxw7_laF9zv5WiWSGIDM_Up9kHXX-DPTeMKn44bQE1mVu4fmWDgBRFXsEDAAj1S0o9aZFK5hY51sudmDAKMwua4_HeEcKo1S4b0jFZOehImcadZhhD_itdQ7Xps-uEEb6Z6jR3i0fMGM4GX4gO48z1XMVmPiOqPoE1G_pEZJMrwZQuUX8074F5-kWej4kkZUsZiP1fDOKtOxJ3fPSP4mNkSrBtU4E-vfvM6NitBiA5JGM5mOEM4sjpyxvUr-mX79CYnOYIqYIJfUn3qgIU2oQThgV6feAFwktpqpktDVZKhSz-2_y8prPCCkMPa_bYPy5TC-v3xnBwrz6d29pHKQitkEqquo_3rjMmtUlsuZ0COS9cwBGT8QIOKIrIu1BAsBarA3AwORw22PFEZ0BsDiO-2ZHloGavhqdbyAmG5hoC1XucFA6Awmt7xVCmf-HEW30t6PYlNEPCiwa1rmkbomsCRnlI9z5eSU6Qo1P5AwqrVYku9dDgnfqquKzgIwkPD4H5CbVNZLOMlvpxvPusuxZtz_gZt_toBQsHAfIGPYk7Mq6EMF9rh5L12UsJZXd8gDvaBvGcwPNlvTgUk1jRSRjchXpTHtyDejjsj6RdjBQuQhszDhi4Qnr4hssfVbfTrf5xeJEbB8pKTsgu2K_HtzFjOOpFMV0C_PlDNO6qUYZJ3PO5Xtig6Se4ktFBbj8fwhONPRq0mHxC5QcRjrJws5fAFGVk97u8VKabc6CsU-4WtJRLos3No2YjDRONHxWXo1RP7aoC6MftyPyqMQ9VeyiIL2Rvd4B7yFcc2VVzBzs8hfzrzwHc5xxnFWHw4mF_Klkxjoiv1FmHNDJdsASqV9ts7JxZ-mHuYV9px6jqNz0z5UHpOdTGiCSLgH_PIrNDaeYD7SYfcZg0lm8u72p0ZtM9YVh3pjgPJQ-OvHKk4r7GP-Ybavjc_Y9bFtbM7yc5f_zb9E-XAJ-jTwYDahMcu0c-XQh_fKpcsoqreatwJri1IooVCHeWT1y4COe5ghHg5ZILfUK9SoSeY1sTiHv87rvJ90aQanLqic8-GG3dmcENx9ikcWJ9BNs-Jm8d2XX5Gvyw9GMLGSQuA7JfI2YLmwzdPsTWUNaEAjTEZ9tRUsXQI--1hnO0gH2uF_UYWgAp8ApiuJsT2BZTa-e4XL0kioNAIGBGdz0ucSzI9Md383samwGR8COHqNWcqMbmtf1dpWJ_fqorqNYDeiy95wF9bJIka8uhnXmjVu97Ae9hO2_cOuSGArvtU7i7KouBIuSWGNsZmPt5TkdTWTd0Z3F89qfwS71_JVEr6rr5jvtQIV2HbAEc_Ga=)
|
